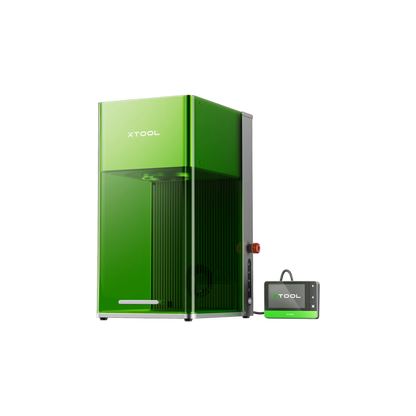

xTool F1 Ultra 20W Fiber & Diode Dual Laser Engraver
Η τιμή δεν περιλαμβάνει ΦΠΑ. Ο ΦΠΑ υπολογίζεται στο ταμείο.
The xTool F1 Ultra 20W Fiber Laser delivers deep engraving, embossing, and thin metal cutting, while its dual-laser system works across wood, acrylic, leather, metal, and more. With 10,000 mm/s engraving speed, Auto Streamline™ batch processing, and an enclosed safety design, it ensures fast, versatile, and secure production.
Package

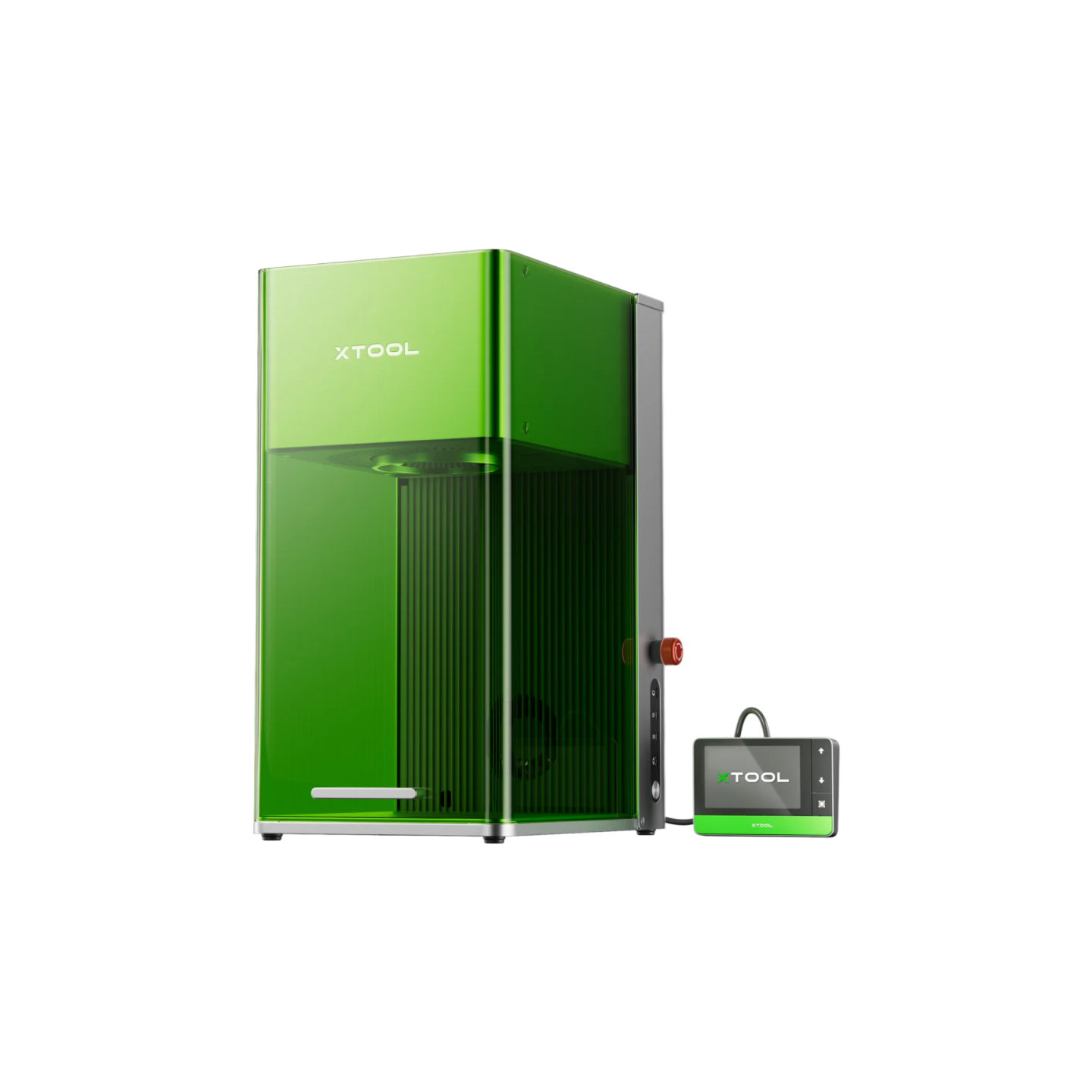

F1 Ultra Standalone

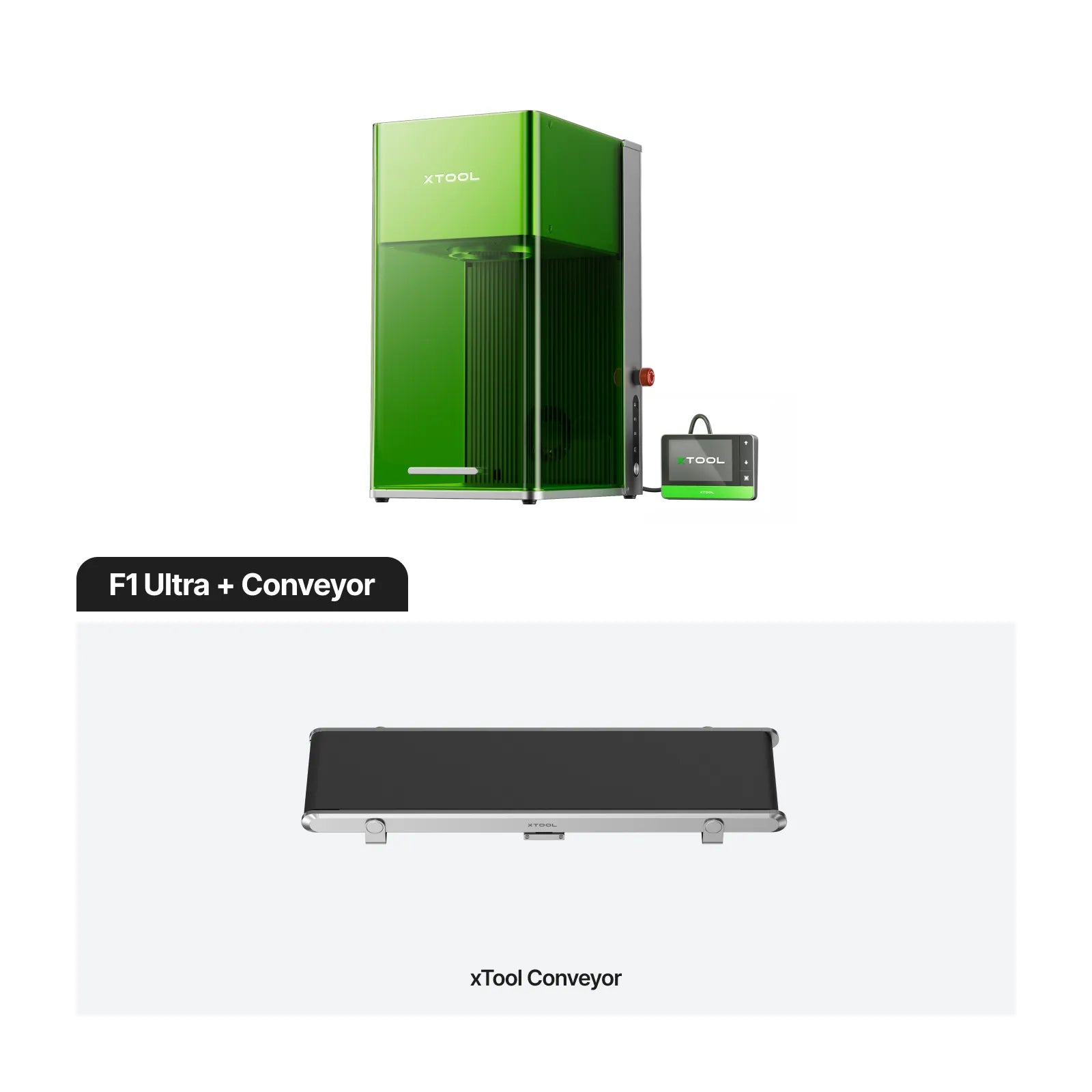

F1 Ultra + Conveyor

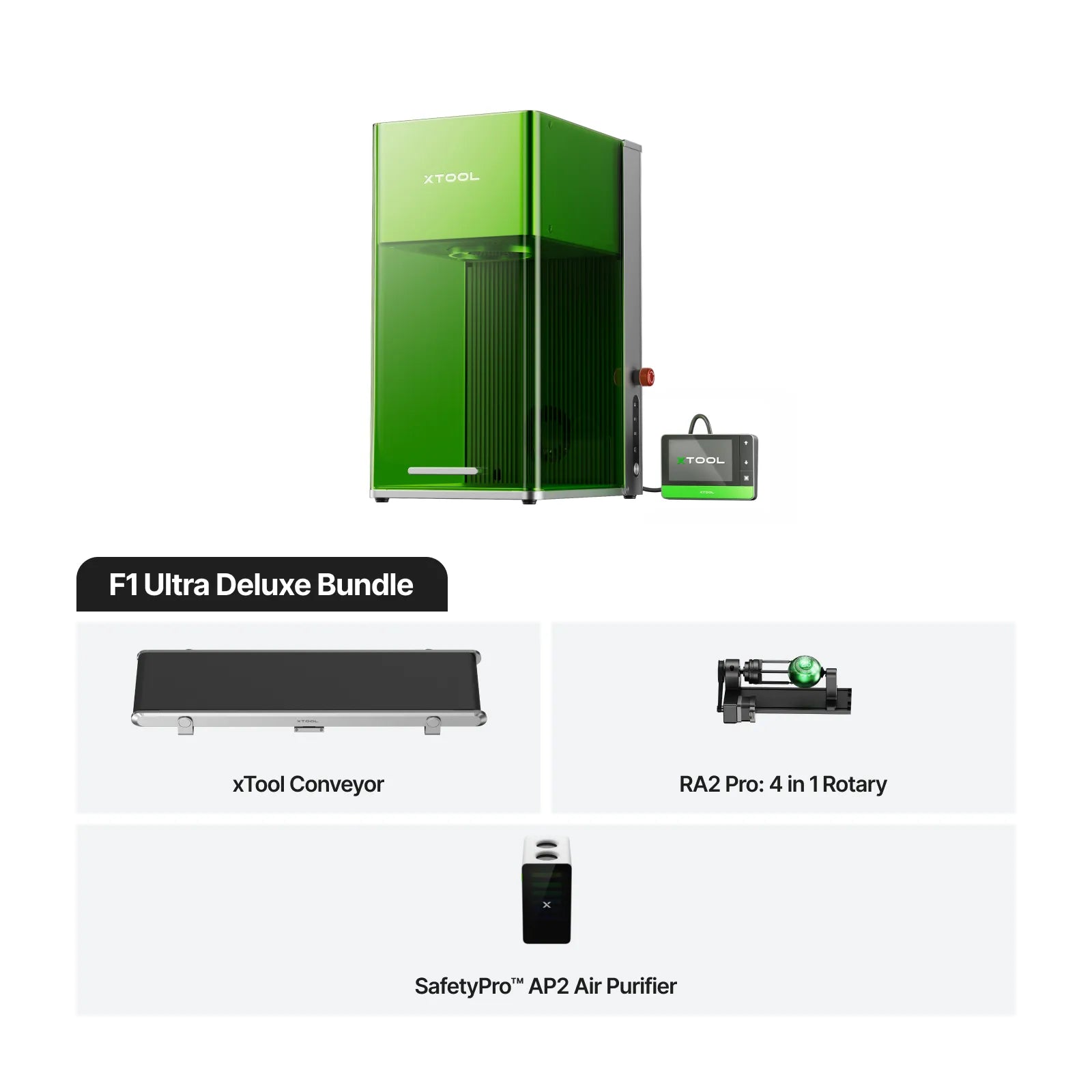

F1 Ultra Deluxe Bundle
Δεν ήταν δυνατή η φόρτωση της διαθεσιμότητας παραλαβής
Payment & Security
Είμαστε εδώ για να βοηθήσουμε
Αν έχετε ερωτήσεις για κάποιο προϊόν, αν χρειάζεστε προσφορά χονδρικής, εξειδικευμένη συμβουλευτική ή θέλετε να κλείσετε ραντεβού για demo, η ομάδα μας είναι πάντα στη διάθεση σας

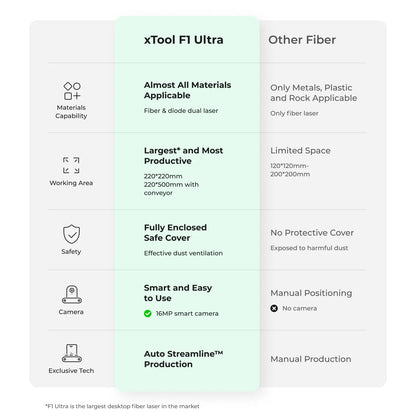

Why xTool F1 Ultra is the Best of Its Kind?
The Ultimate Production Solution for Everyone
-

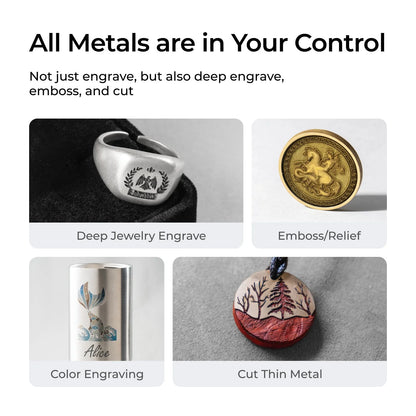

Deep-Engrave Jewlery

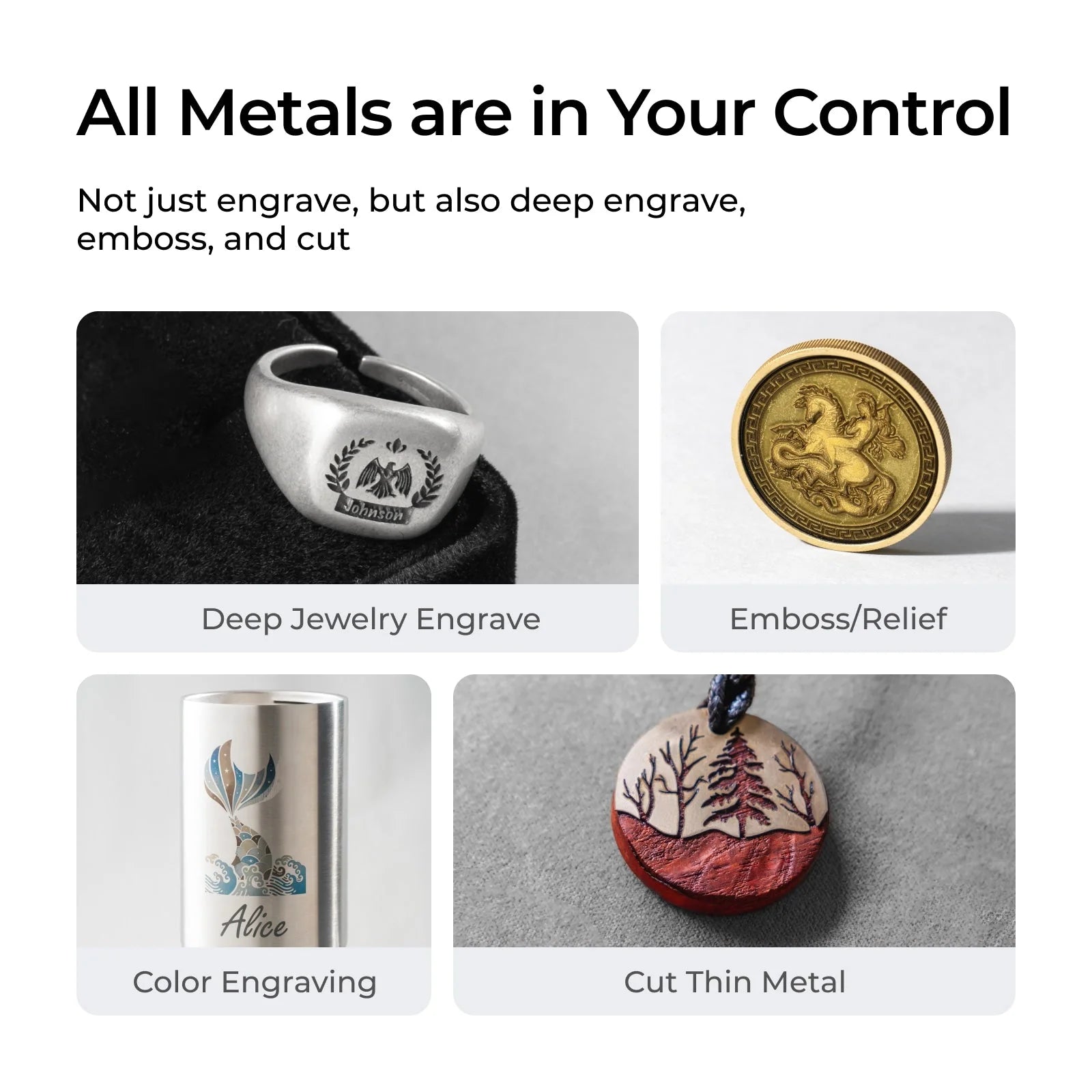

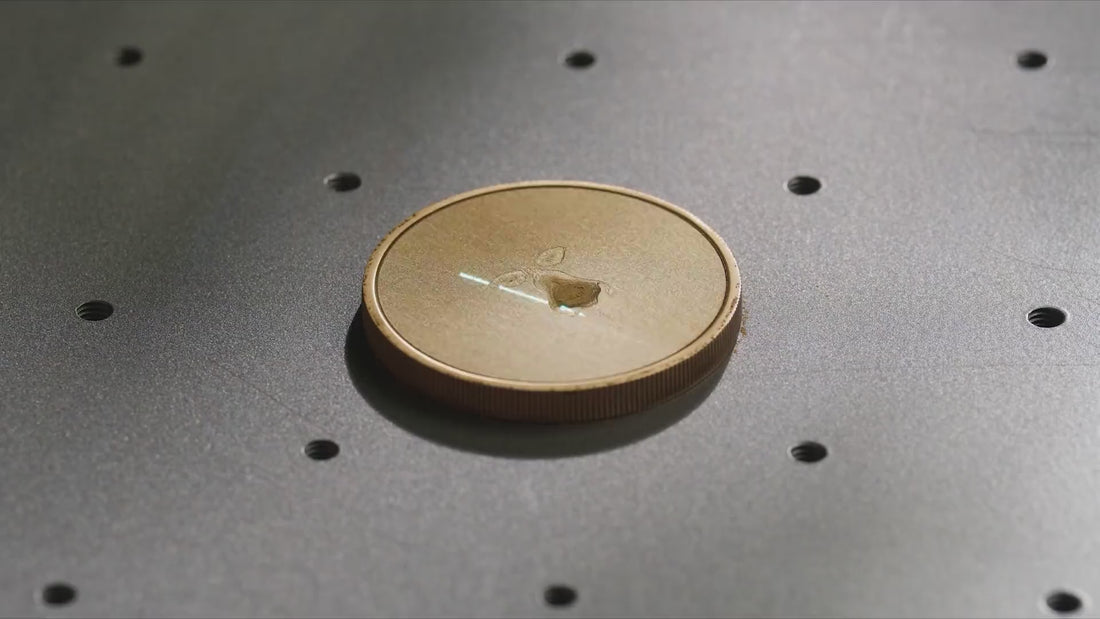

Create stunning jewelry with deep metal engraving, embossing, thin metal cutting
-
Onsite Customizing
In just 30 seconds, F1 Ultra can earn extra by customization
-
Streamline your production
F1 ultra features auto streamline™ production function, finishing a batch in minutes
-
Make All Types of Gifts
Working on over 300 materials, F1 ultra can satisfy all of your gift/souvenir ideas

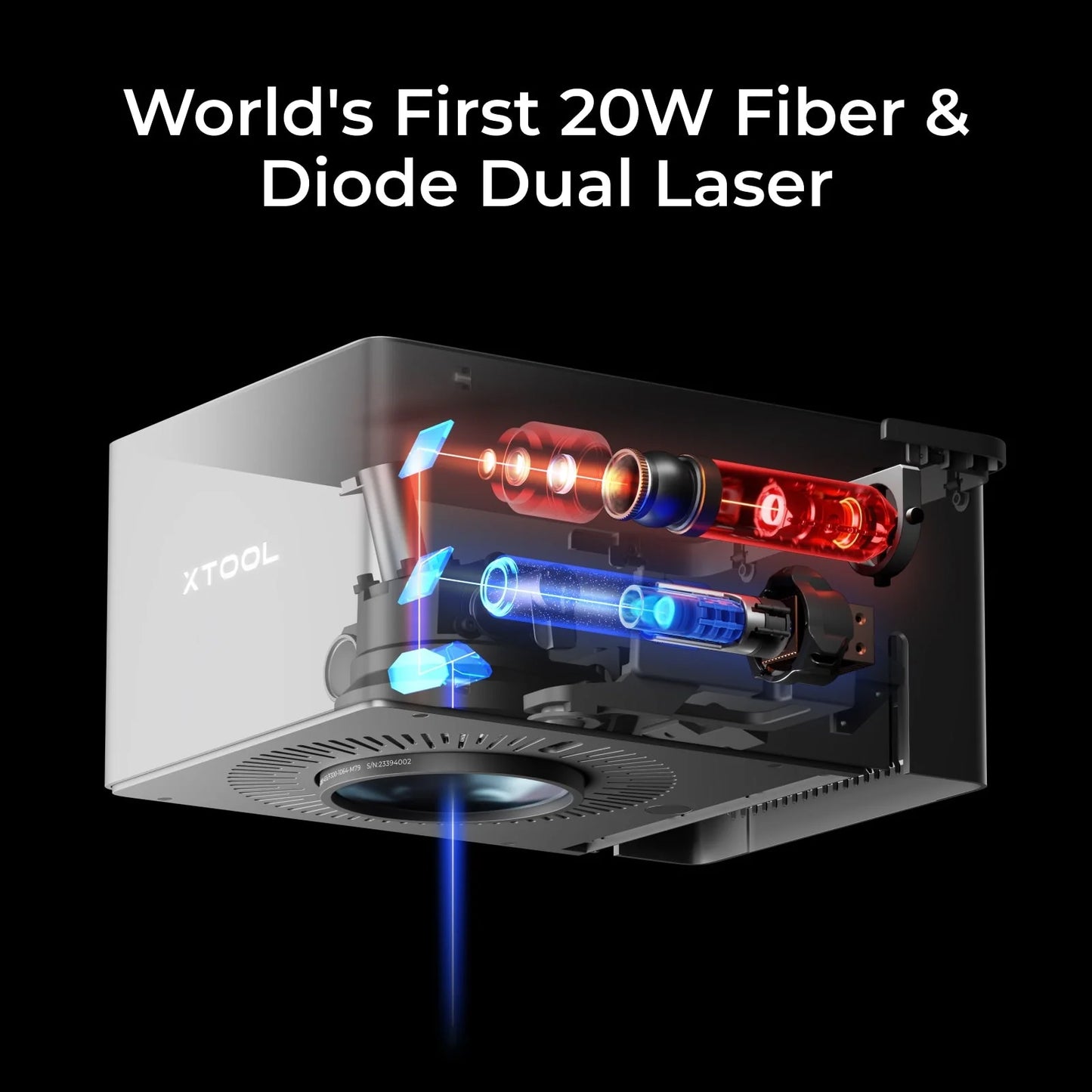

20W Power Beast,Make Your Masterpiece
With a 20W fiber laser and a 20W diode laser, F1 Ultra is potent enough for deep engraving, embossing reliefing and cutting on metals, wood, acrylic, etc

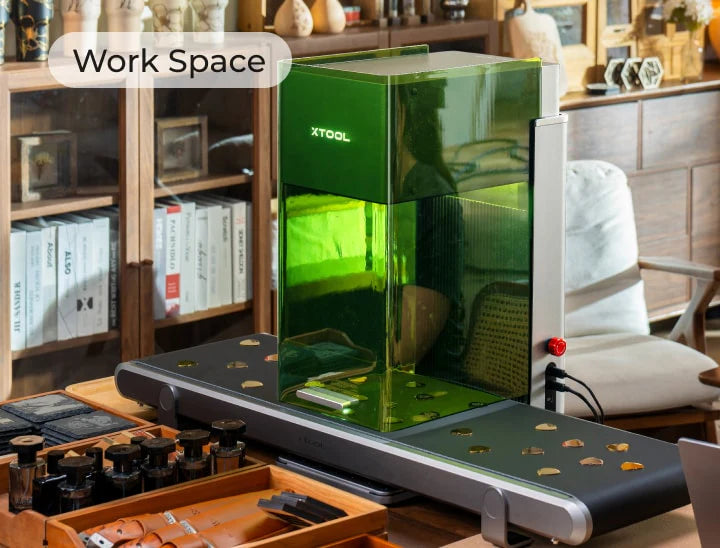

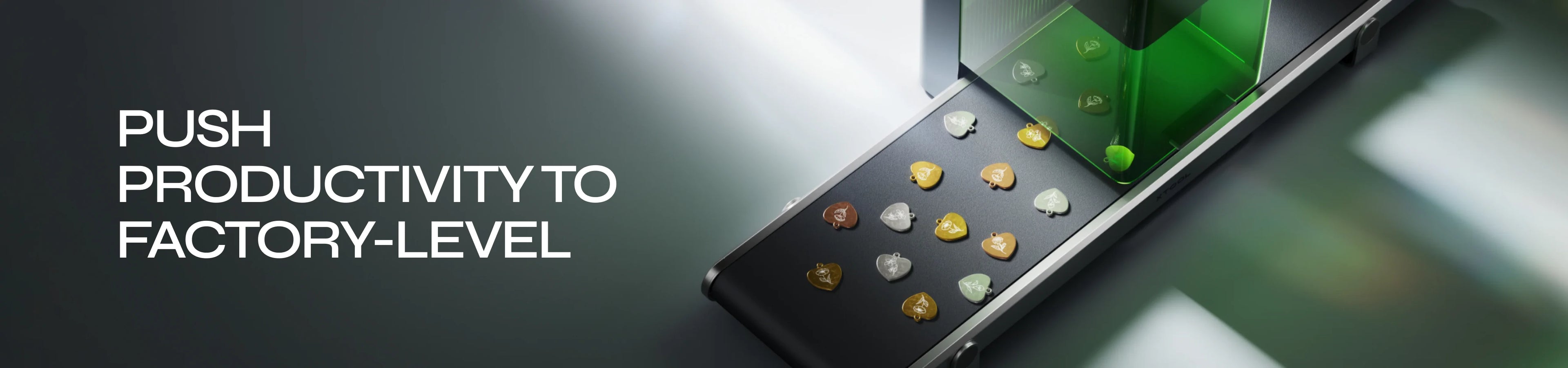

Auto Streamline™ Your Wild Production
One can effortlessly handle large quantities of production at times when large orders are in rush
Camera Made Production Easy
Just place the materials on the conveyor, and let ultra do the rest. Camera can automatically identify the shape of the materials while the xTool Creative Space software helps engrave patterns accurately to every piece.
Innovation Expands Engraving Boundaries

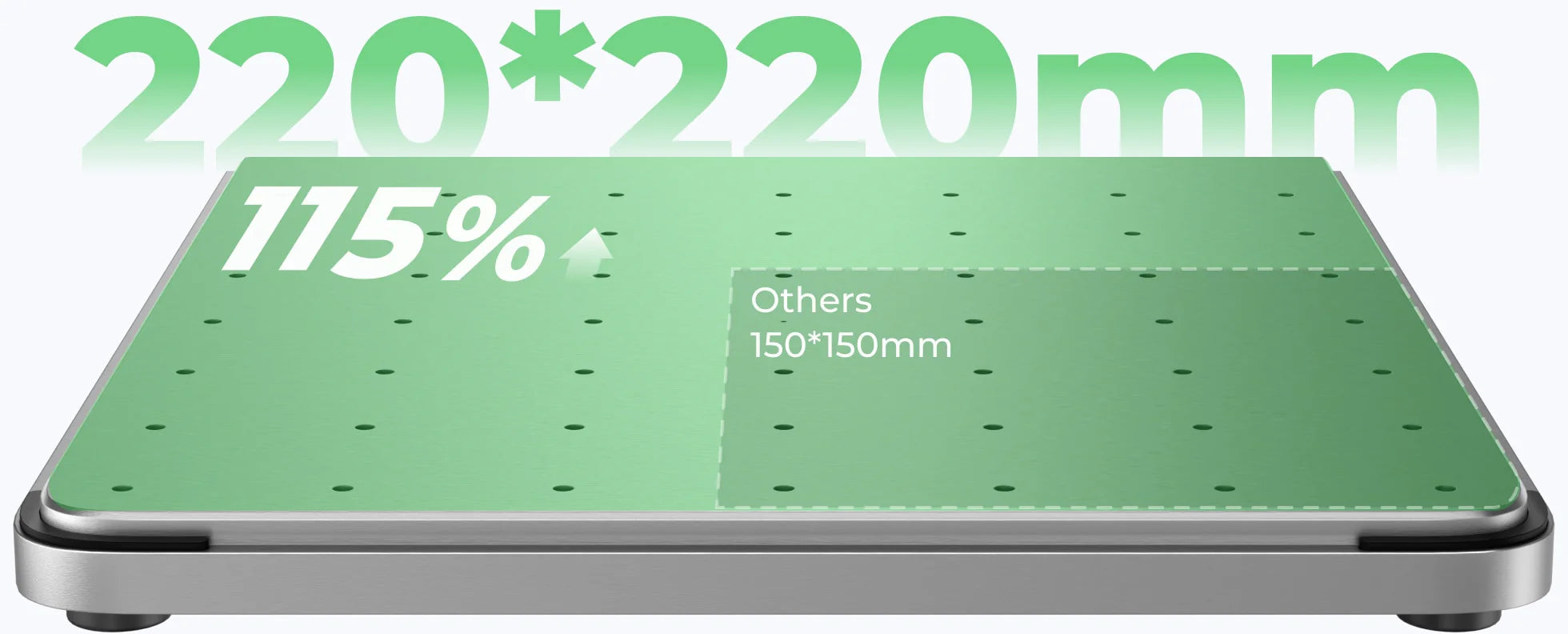

Break Through Technological Limit

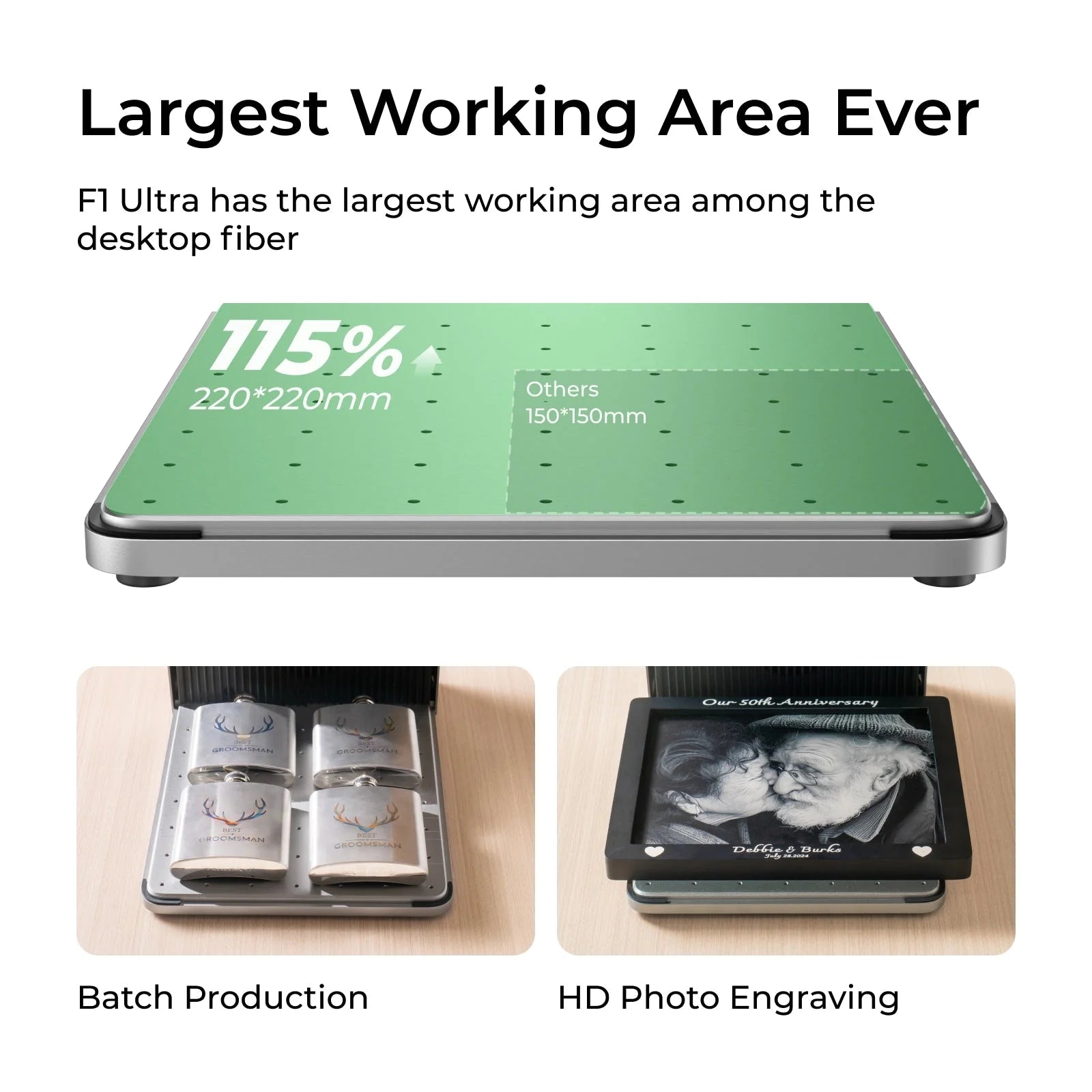

After dozens of iterations of optical path design, we've pushed the working area limit of fiber lasers to a new level without sacrificing the details and precision of the engraving in every corner of the working area.

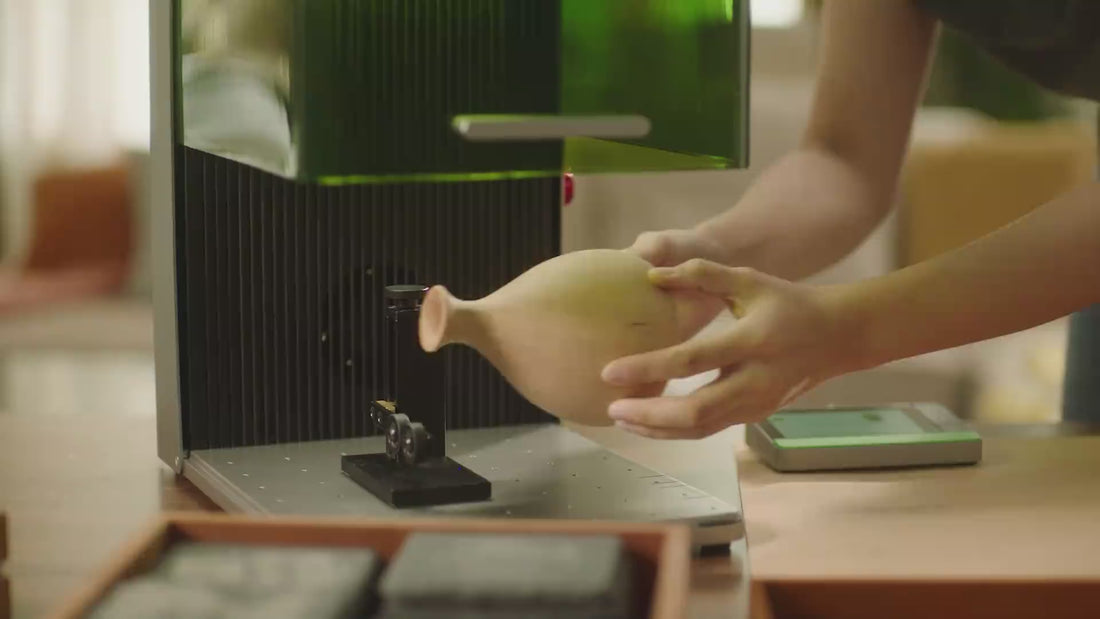

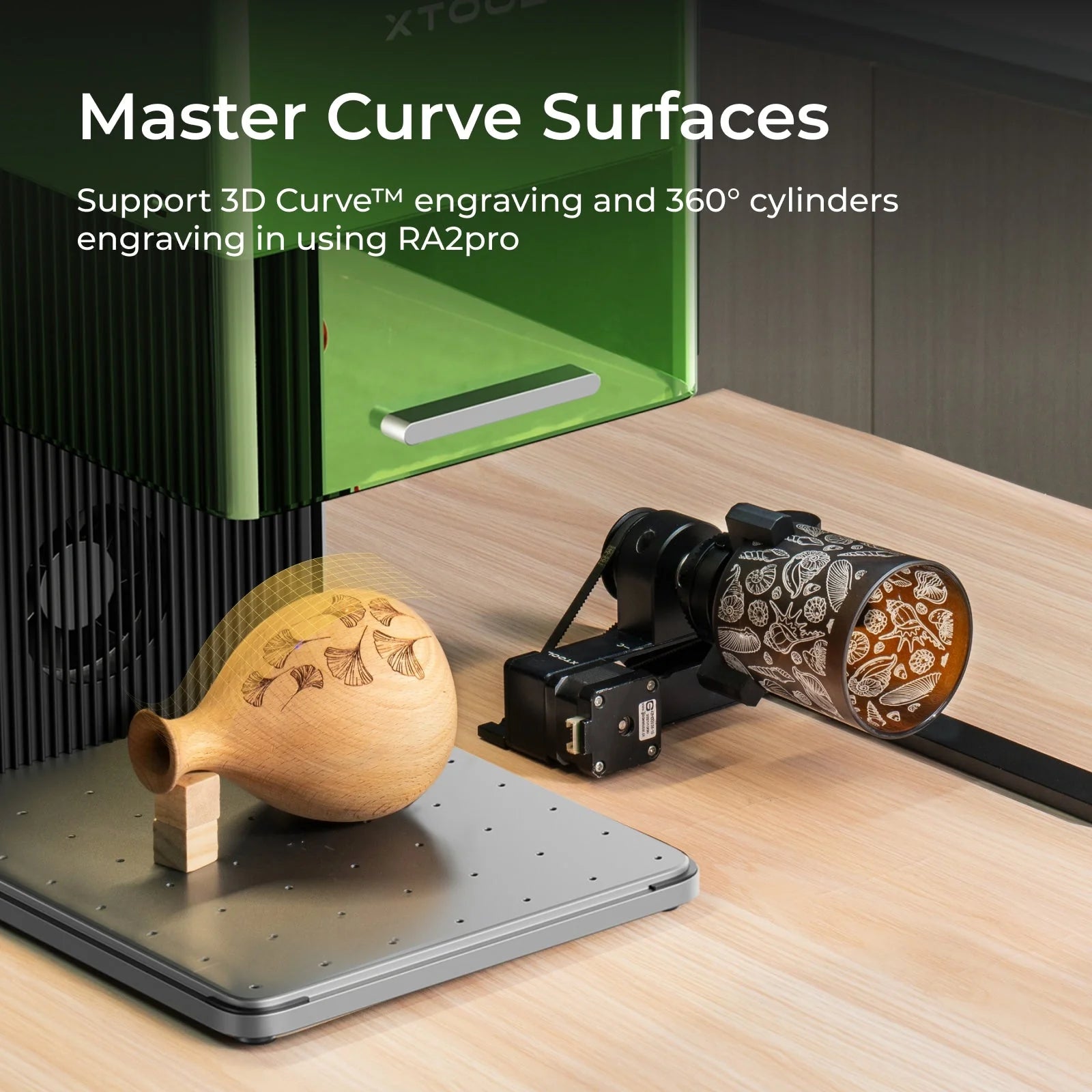

Expand Engraving on Curved Objects
Directly Engrave on Curved Surfaces
xTool exclusive 3D Curve™ Engraving automatically creates 3D models for curved surfaces to engrave any patterns flawlessly.

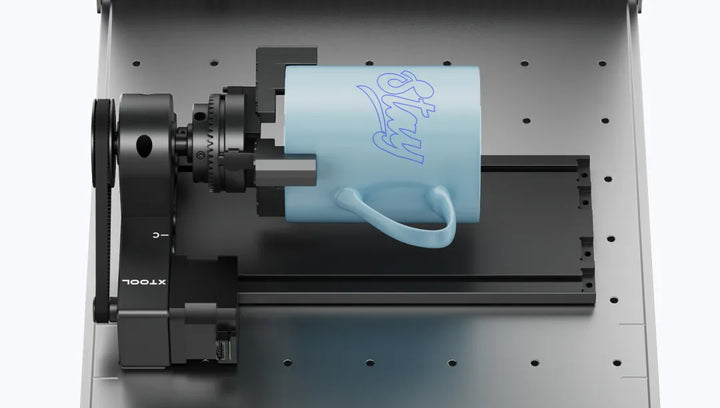

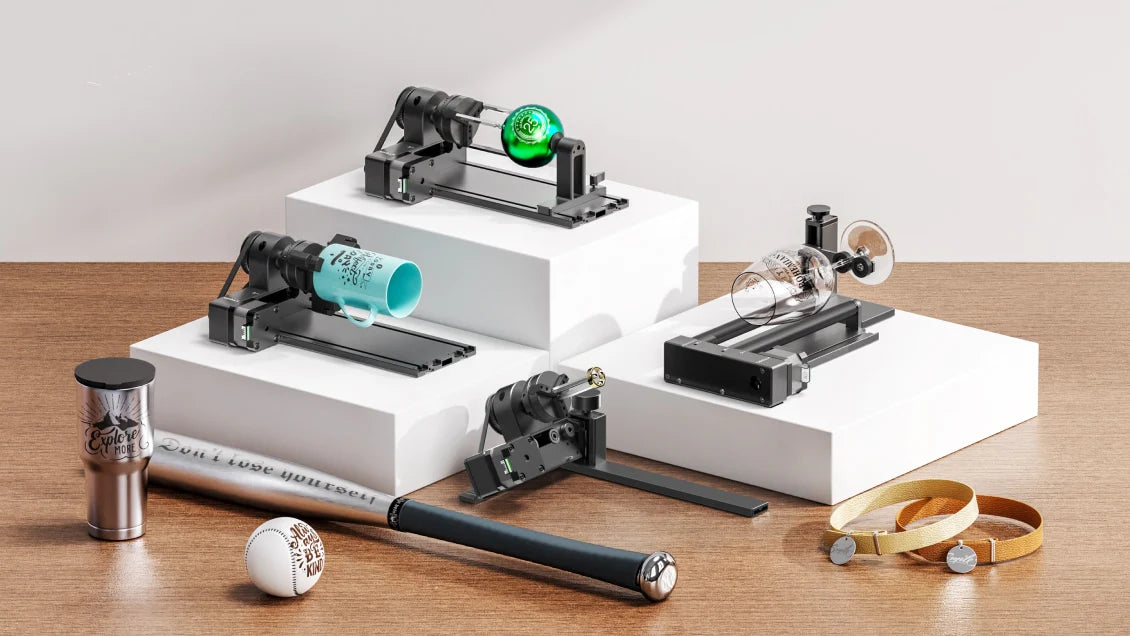

Support 90% Cylinder Engraving
The RA2 Pro is the world's first 4-in-1 rotary. 4 forms of rotary are suitable for most of the daily use of cylinders and spheres, such as tumblers, mugs, Christmas balls, rings, etc.

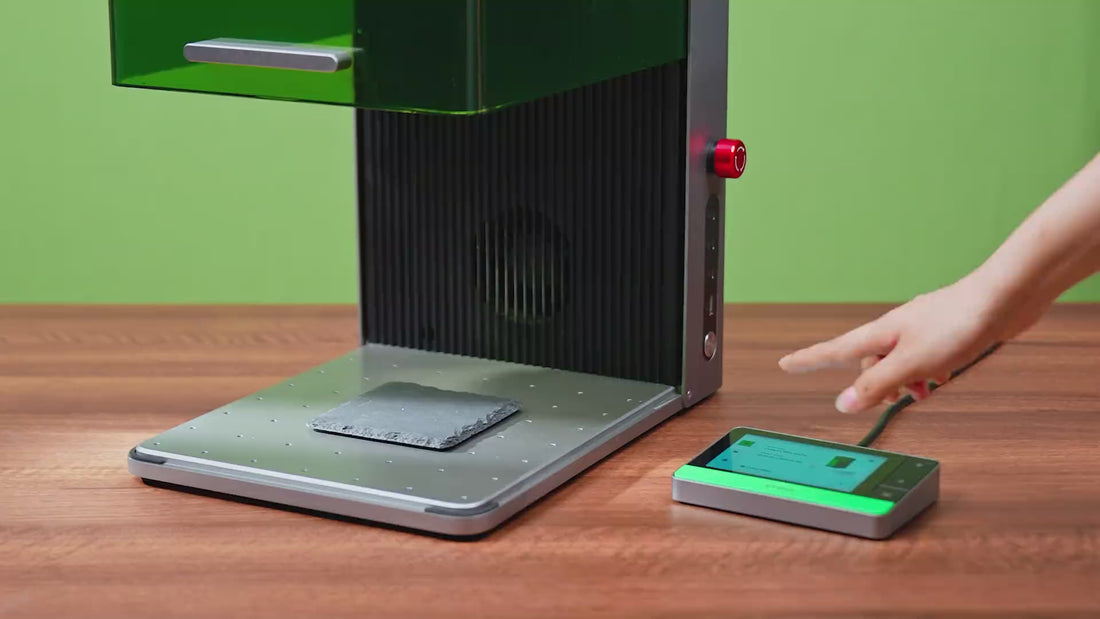

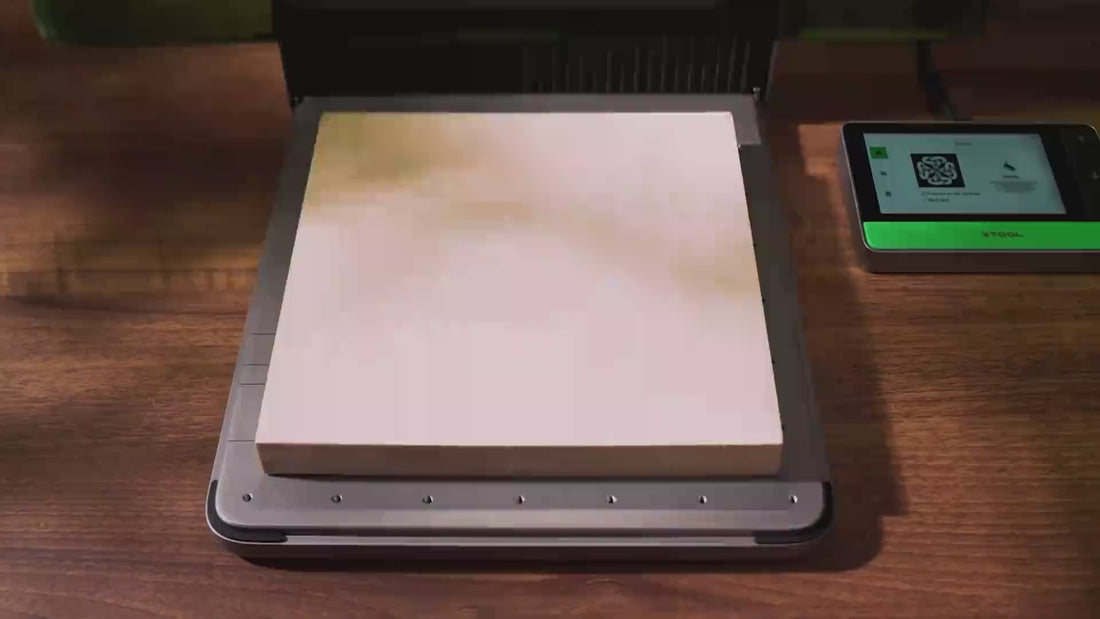

Always Ready to Create with Control Panel
No computer and internet? No problem! The F1 Ultra touchable control panel stores 7GB of project files and independently controls F1 Ultra to engrave or cut.

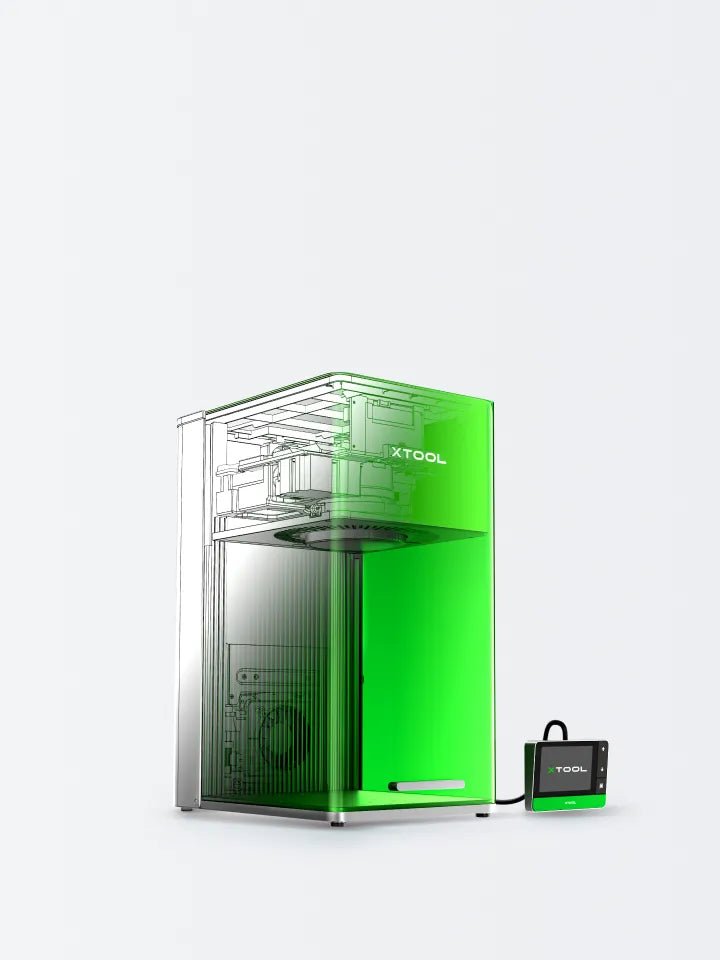

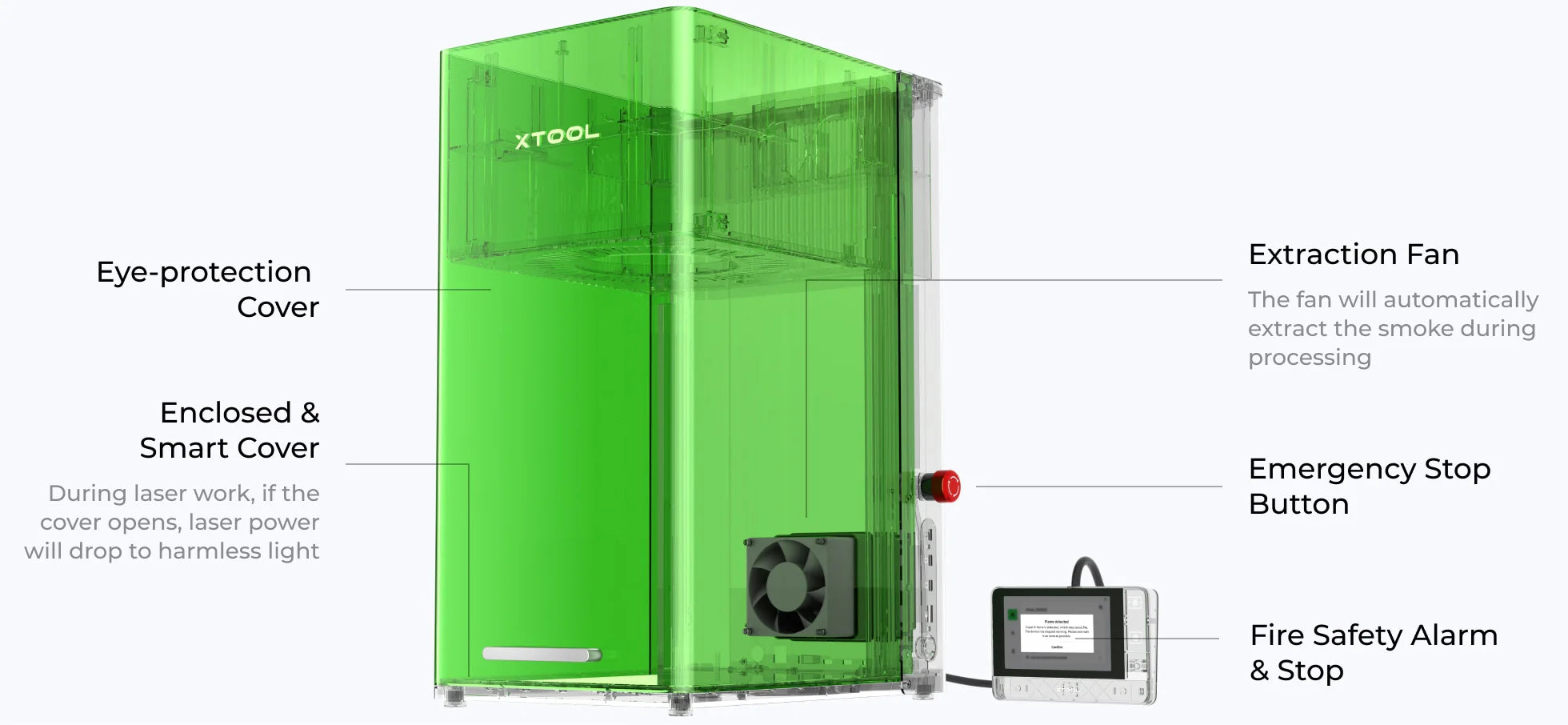

Safe in All Aspects
Every Detail Matters for a Better Experience

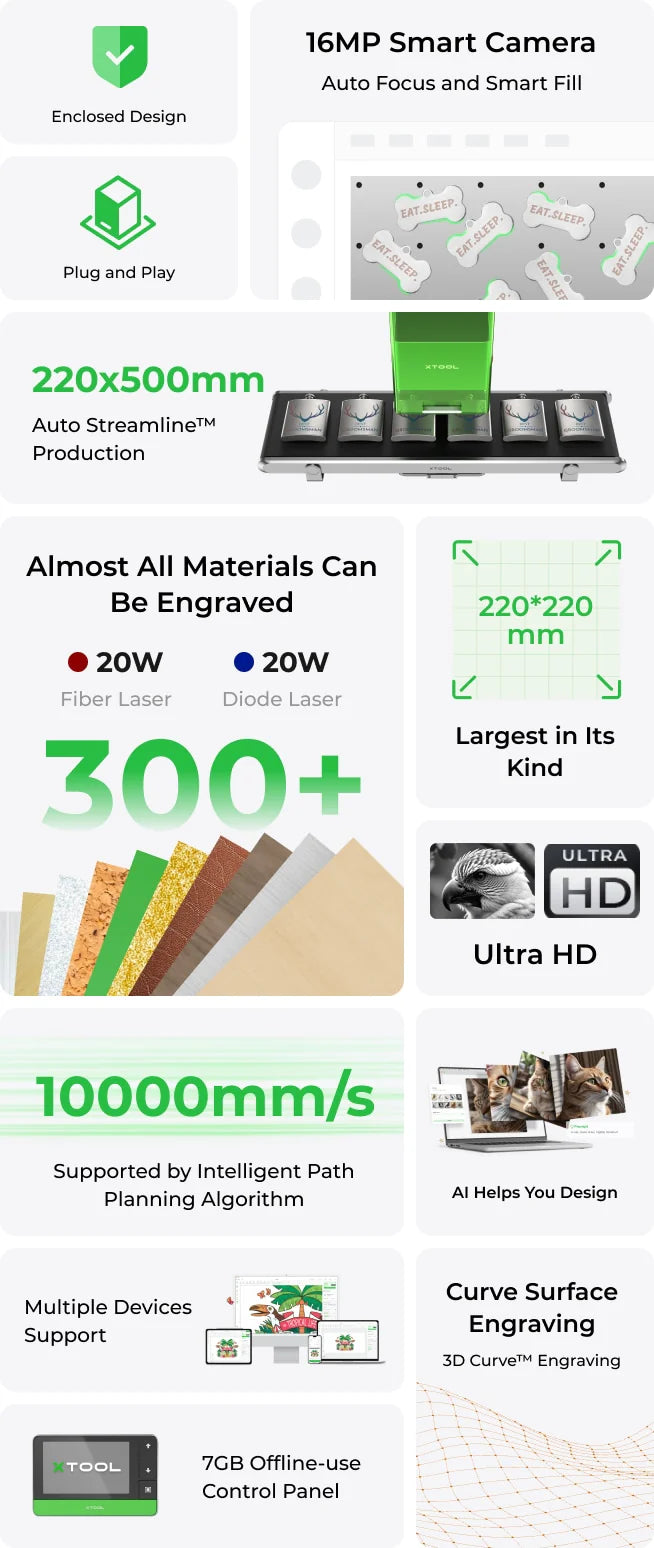

Specification
Buy NowProcessing Capacity
| Laser Type | 20W Diode Laser + 20W Fiber Laser |
| Processing Mode | Laser Engraving, Laser Cutting |
| Laser Cuttable | Diode Laser : Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic | Fiber Laser : Brass, Stainless Steel, Aluminum |
| Laser Engravable | Diode Laser : Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal | Fiber Laser : Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold |
| Working Area | 220 mm × 220 mm or 220 mm × 500 mm (with conveyor) |
| Max. Working Speed | 10000 mm/s |
| Max. Laser Cutting Capacity (Basswood) | 15 mm in Multiple Passes |
| Max. Laser Cutting Capacity (Acrylic) | 12 mm in Multiple Passes |
| Max. Processing Height | 145 mm |
| Max. Rotary Engraving Diameter | 145 mm |

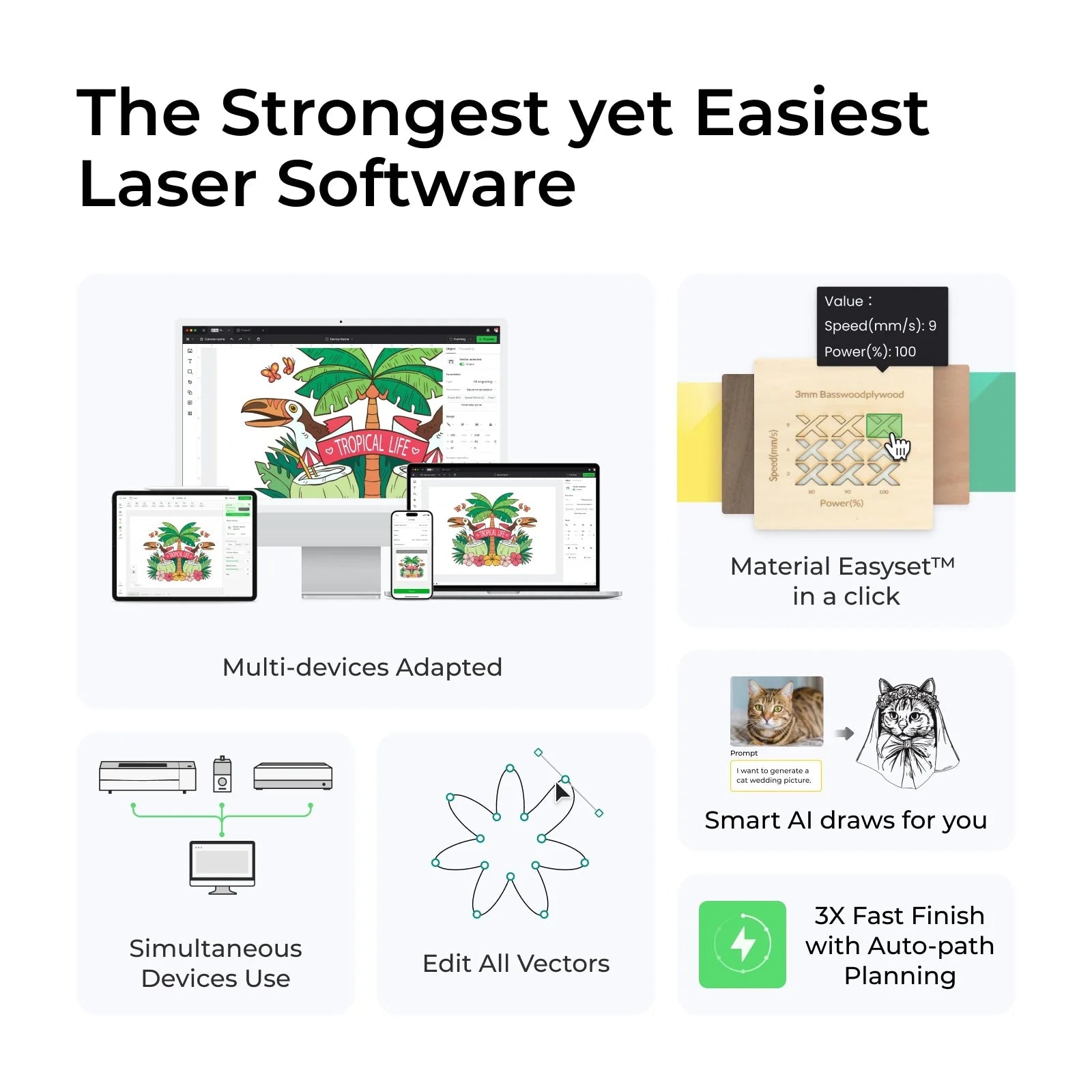

Smart Software
| Supported Software | xTool Creative Space/Lightburn |
| Operating System | Android/iOS/iPad/Windows/macOS |
| Connection Method | USB/Wi-Fi/IP/Hotspot |
| Supported Files | SVG/DXF/JPG/JPEG/PNG/BMP/TIF |
| AImake Compatibility | Yes |
Easy Operation

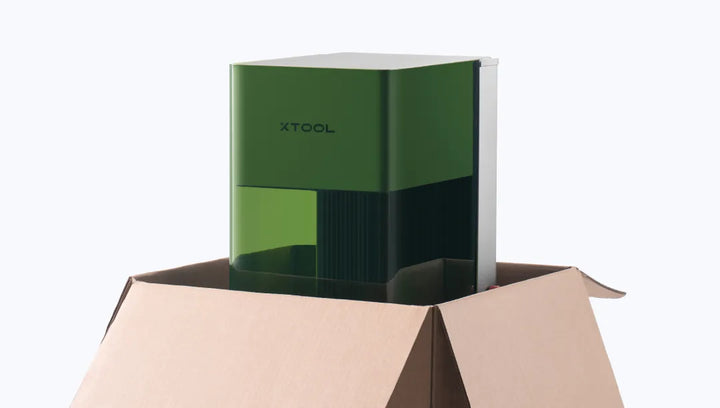

| Pre-assembled | Yes |
| Built-in Camera | 16 MP Smart Camera |
| Positioning Method | Camera Positioning |
| Focus Mode | Autofocus |
| Preview Method | Smart Camera Preview | High-speed Light Live Preview |
Accuracy & Precision
| Laser Spot Size | 0.08 mm × 0.1 mm (20W Diode Laser) | 0.03 mm × 0.03 mm (20W Fiber Laser) |
| Ranging Precision | 0.5 mm, Camera |
| Motion Accuracy | 0.00482 mm |
General Information
| Safety Certification | Classr 4 Laser Safety |
| Product Dimensions | 273 mm × 373 mm × 492 mm |
| Product Weight | 14.7 kg |
| Max. Machine Input Power | 250 W - 275 W |
| Power Adapter Input Voltage | 100 V - 240 V, AC 50/60 Hz |
Συχνές Ερωτήσεις
What is the laser type of F1 Ultra? Is it True Fiber?
F1 Ultra is a dual laser. It has 20W fiber and 20W galvo blue diode laser. F1 Ultra can engrave. Almost ALL Common Materials in daily life. Diode lasers perform best on wood, acrylic, leather, slate, glass, ceramic, etc., while fiber lasers can engrave clearly on all-metals (stainless steel, aluminum, gold, silver, iron, platinum) and plastic.
And yes, F1 Ultra is a true fiber. The F1 Ultra uses an IR (infrared laser) as its laser source, while the fiber (diode-pumped fiber laser) serves as the gain medium. Both are essential components for generating laser light.
Each laser light is produced when the laser source strikes the gain medium, which then amplifies the intensity of the laser beam. Unlike the S1 & F1 models and other common IR lasers on the market that use DPSS (diode-pumped solid-state laser) as the gain medium, the F1 Ultra leverages a fiber gain medium to maximize laser power. This results in deeper engraving and cutting at the same power level.
How's F1 Ultra's Performance on Metal? Can it Cut Metal?
F1 Ultra can deeply engrave, emboss and even cut metal. F1 Ultra can cut 0.4mm brass, 0.3mm stainless steel and 0.2mm aluminum sheet.
Will F1 Ultra be compatible with the accessory of F1?

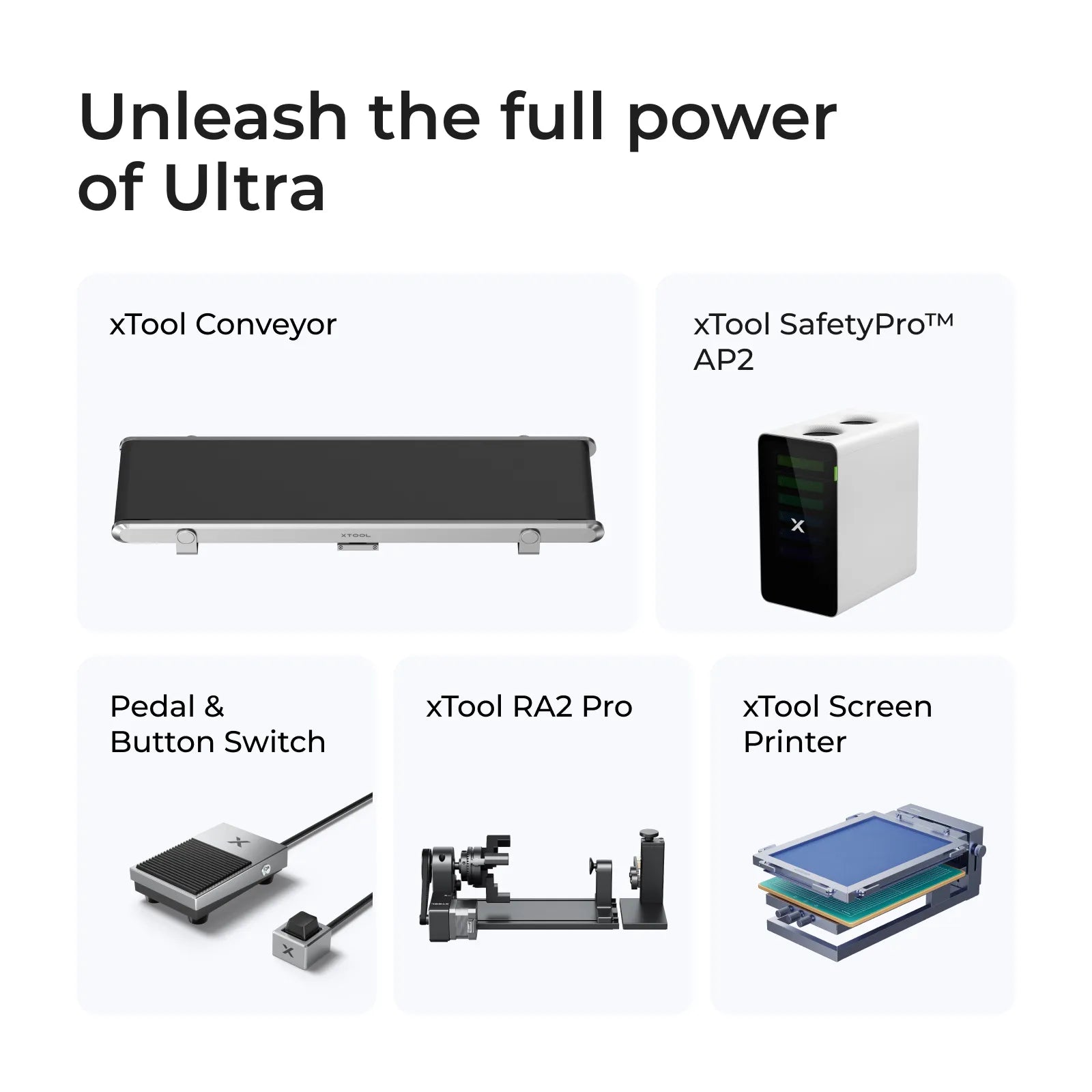

F1 Ultra will be compatible with RA2 Pro. For the smoke purifier, we recommend using the SafetyPro™ AP2 Air Purifier for its larger filters and longer purification lifespan.

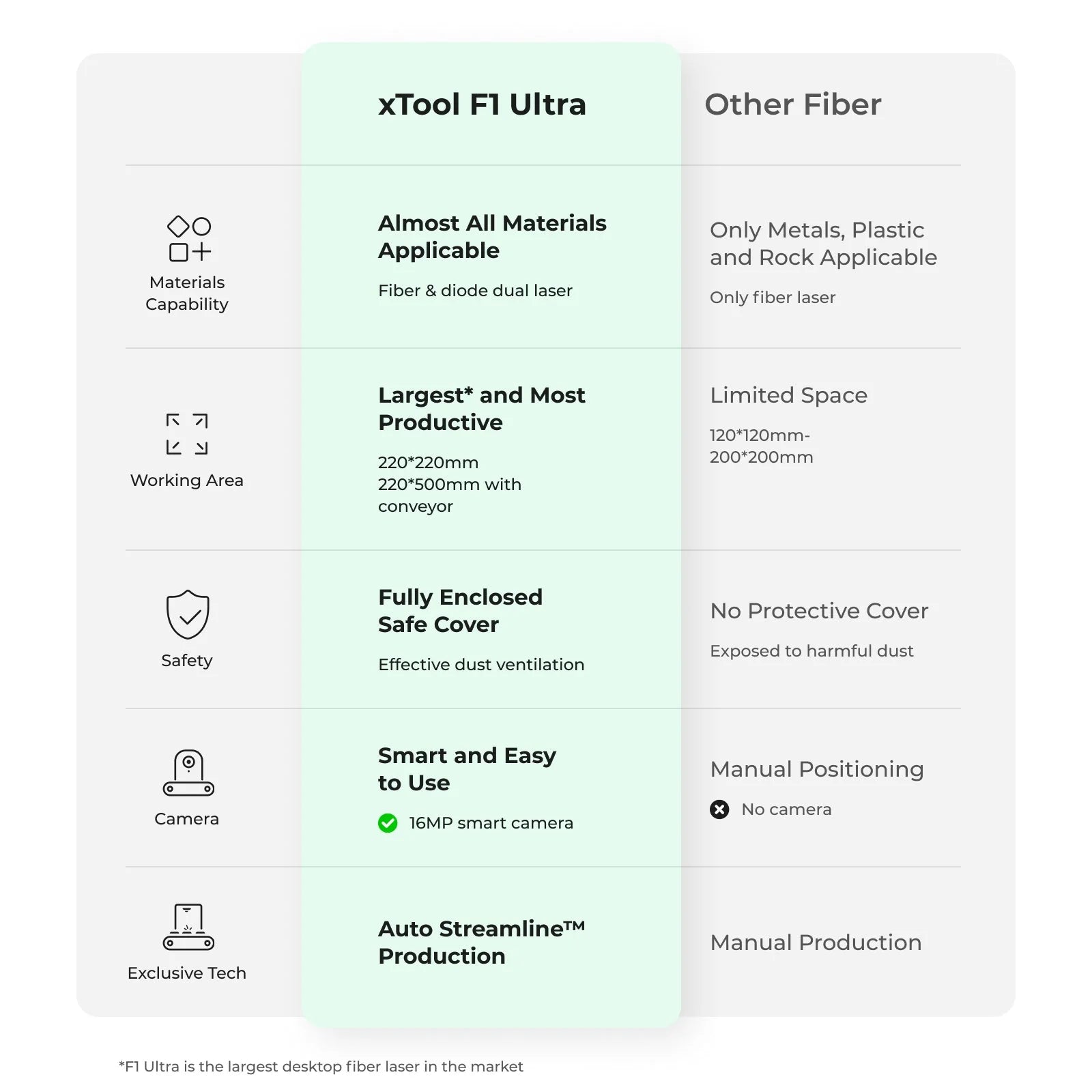

What is the difference between F1 and F1 Ultra?
F1 Ultra：
Most Efficient Batch Engraving on almost all materials : F1 Ultra has both 20W Fiber and 20W Diode Laser with its super speed 10000mm/s, 220*220mm engraving area and auto streamline™ production
Versatile Jewelry Making : F1 Ultra has 20W fiber, which can do deep metal engraving, embossing, thin metal cutting
F1:
Craft Fair Must-Have : F1 is the mini size of F1 Ultra, Its compact size makes it portable to bring it to craft fair. With its 2W Infrared laser with 10W diode laser and 4000mm/s, F1 can do customize engraving on almost anything quickly onsite.
DIY Starter : F1 is fun to play and has minimal learning curve, it also has relatively lower price to purchase
What is the engraving resolution of F1 Ultra?
xTool F1 Ultra has ultra HD resolution, same as xTool F1. Its Fiber has 0.03*0.03mm compression spot on fiber, and its diode galvo laser has 0.08*0.1mm compression spot.
Does F1 Ultra have interchangeable field lens？
There is no need to change the field lens of F1 Ultra for several reasons: First, F1 Ultra has the largest working area in desktop fiber. Second, F1 Ultra uses microbeam technology to restore the details of every image, even in the corner of the working area. Third, the field lens is well protected inside F1 Ultra, as we planned an airflow path that (with a built-in fan) blows away all dust generated through engraving outside the machine.
What is the difference between F1 Ultra and P2?
F1 Ultra:
It is the king of desktop laser engraving, and can engrave almost all materials at the fastest speed, most detailed resolution and versatile engraving result.
P2:
King of the desktop laser Cutter, it can cut acrylic up to 20mm thick in all colors, as well as 18mm thick black walnut. It also features a user-friendly 16MP Dual HD Camera.
Can F1 Ultra adjust frequency?
Yes, F1 Ultra can adjust from 30 to 60kHz.
