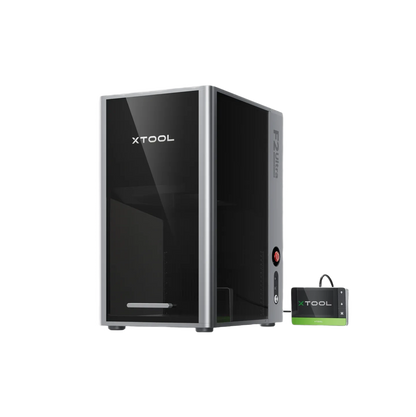

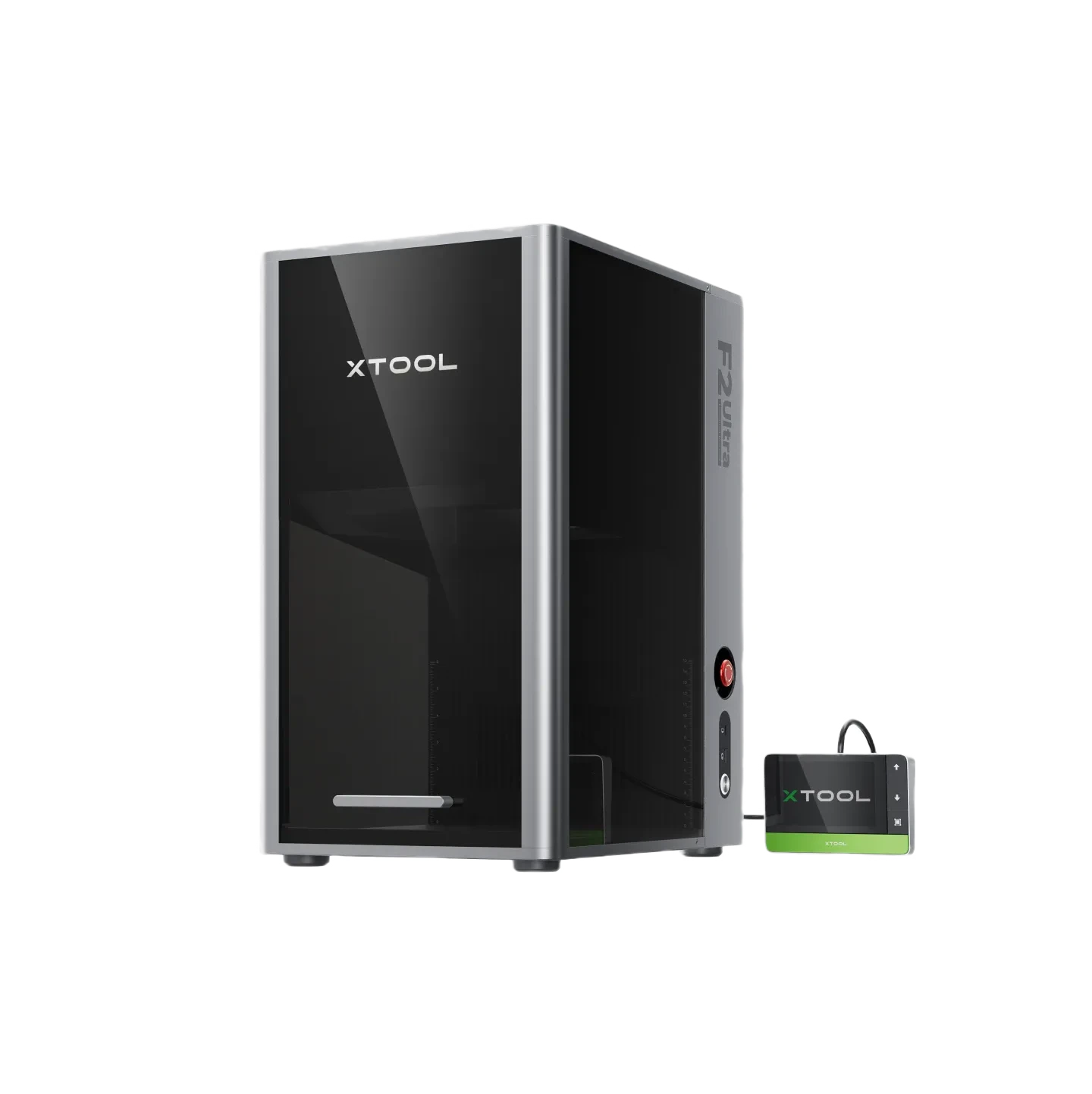

xTool F2 Ultra 60W MOPA & 40W Diode Dual Laser Engraver
Η τιμή δεν περιλαμβάνει ΦΠΑ. Ο ΦΠΑ υπολογίζεται στο ταμείο.
Powered by a 60W MOPA, xTool F2 Ultra delivers vibrant color marking with over 100 consistent shades on metals. Dual 48MP cameras ensure precise alignment and fine detail, even on the smallest items. With full metal capability for color engraving, embossing, and cutting, plus a 220 × 220 mm area and 15,000 mm/s speed, it enables efficient batch production. An enclosed design with eye protection and fire safety stop ensures safe, professional operation.
Version
Dual Laser
Single Laser

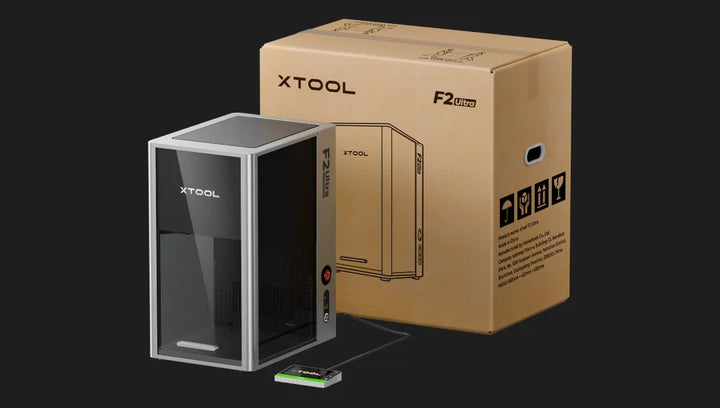

Package
F2 Ultra Standalone

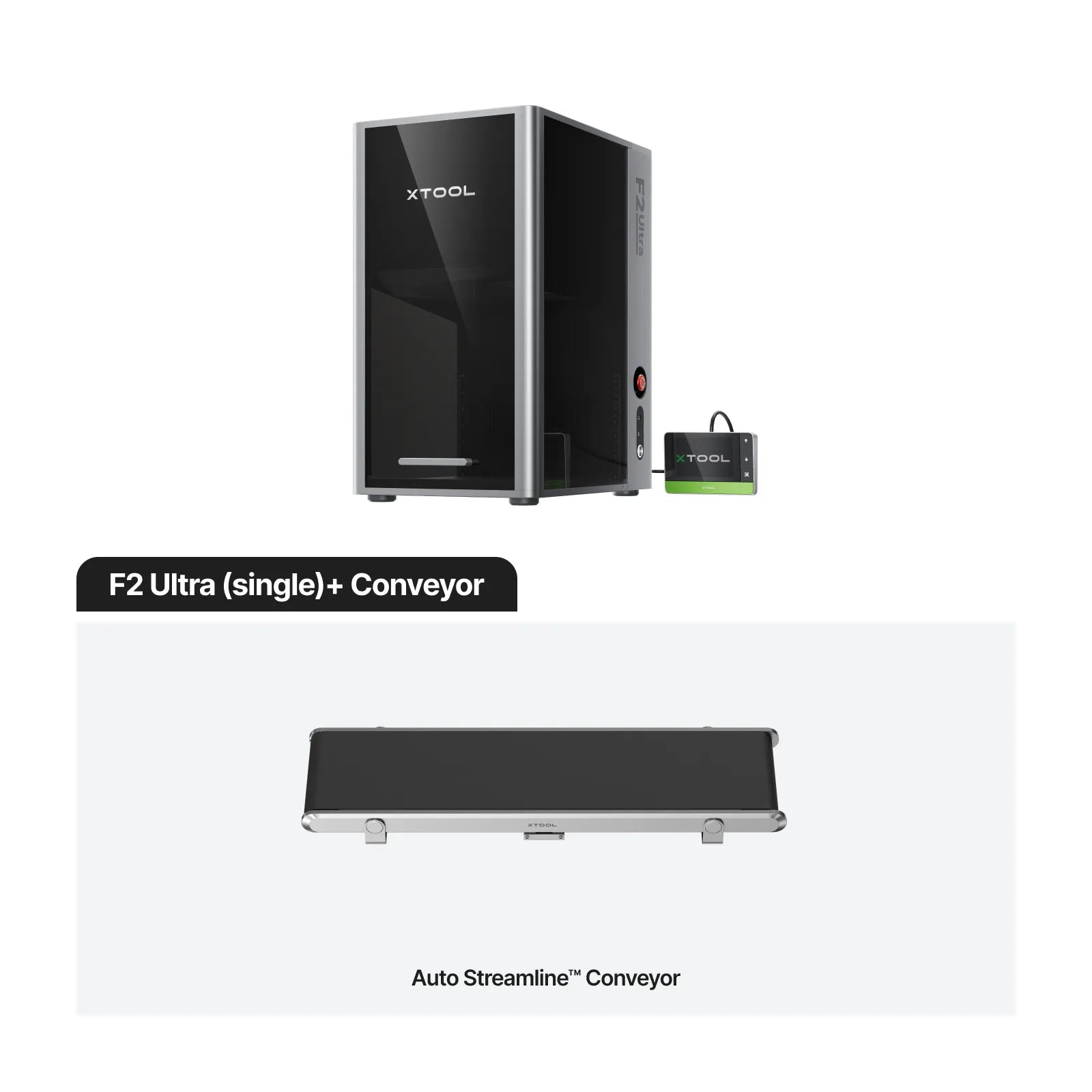

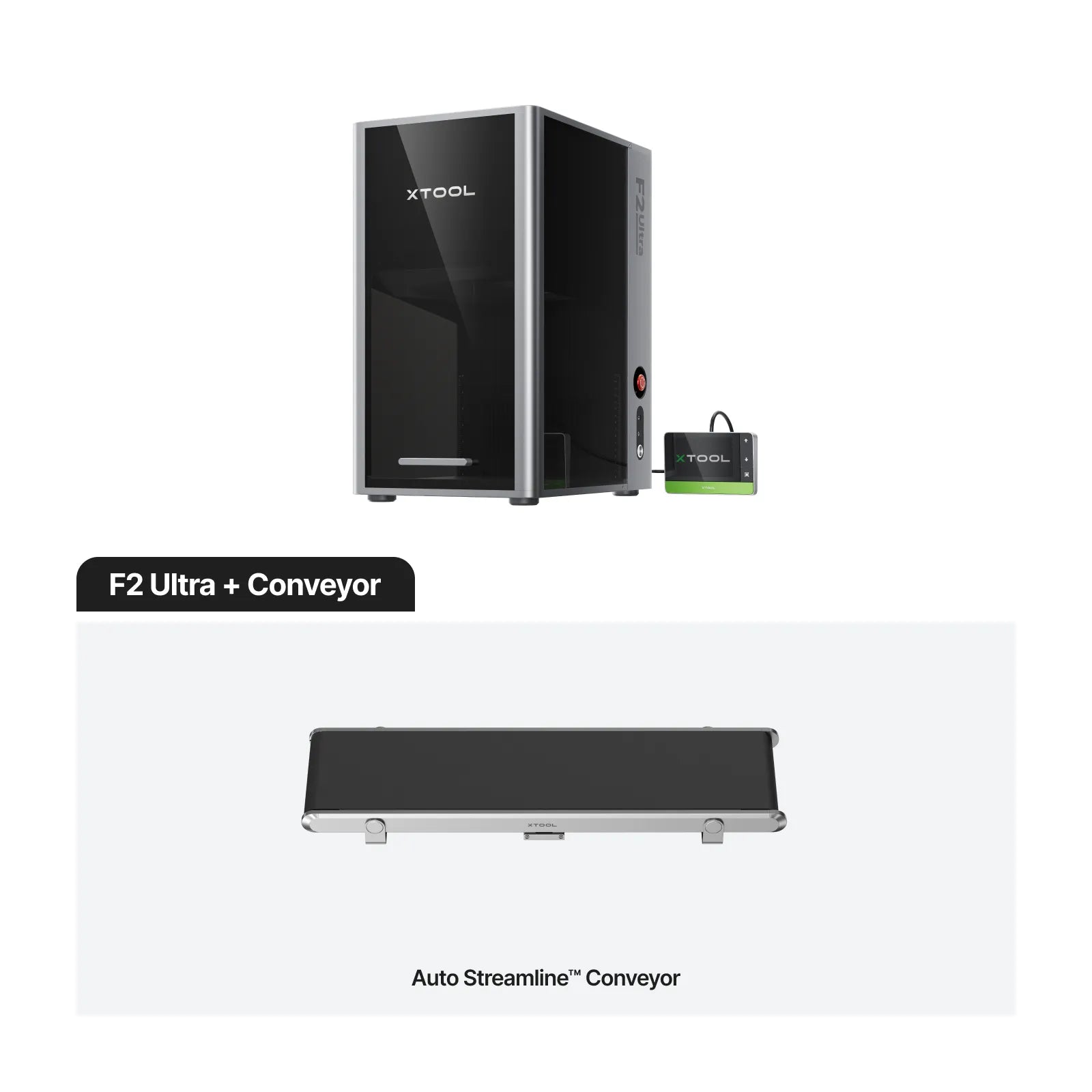

F2 Ultra + Conveyor

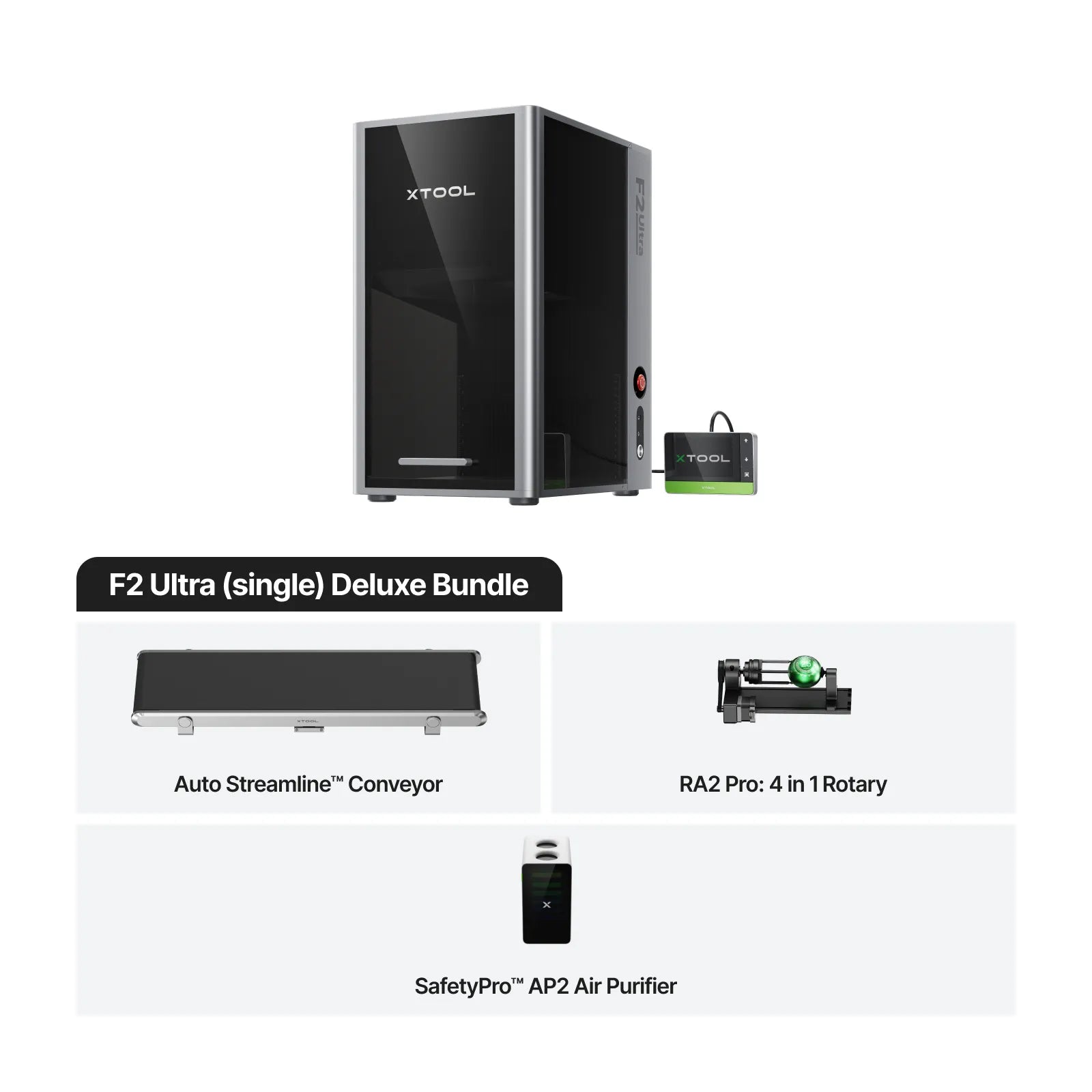

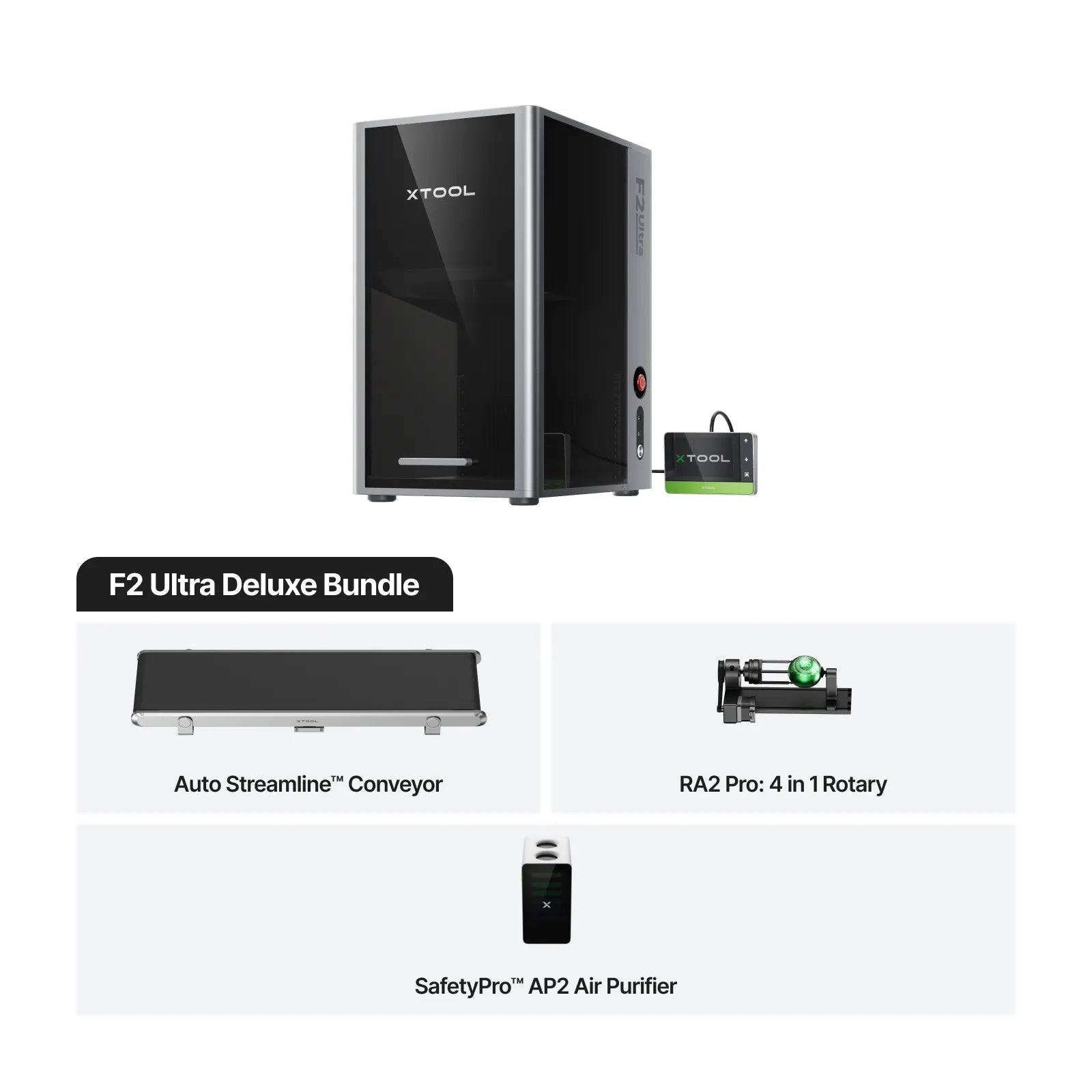

F2 Ultra Deluxe Bundle
Δεν ήταν δυνατή η φόρτωση της διαθεσιμότητας παραλαβής
Payment & Security
Είμαστε εδώ για να βοηθήσουμε
Αν έχετε ερωτήσεις για κάποιο προϊόν, αν χρειάζεστε προσφορά χονδρικής, εξειδικευμένη συμβουλευτική ή θέλετε να κλείσετε ραντεβού για demo, η ομάδα μας είναι πάντα στη διάθεση σας

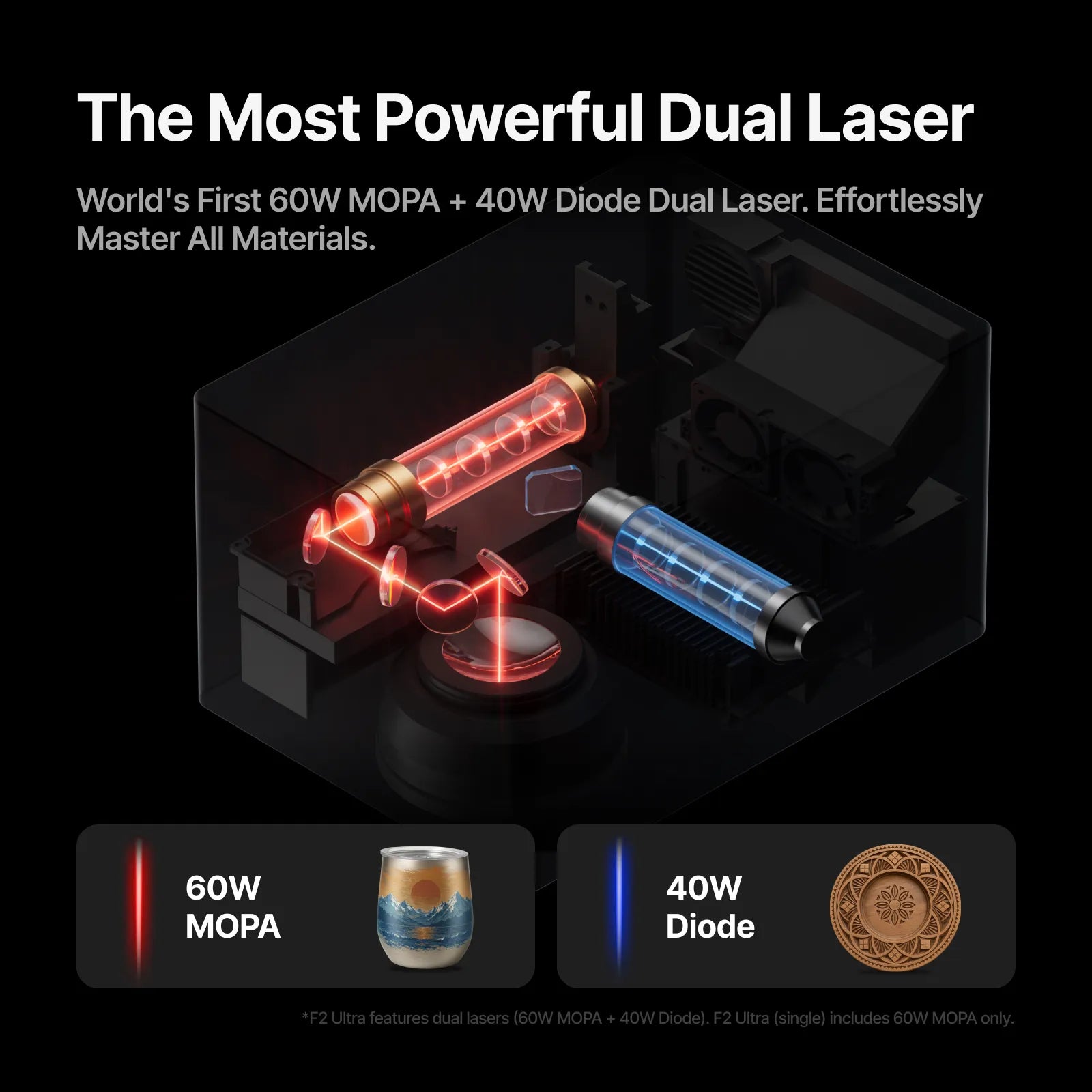

One Powerful Machine Does It All
xTool F2 Ultra offers more possibilities. 60W MOPA laser enables pulse and frequency control, delivering high-precision results whenever needed. 40W diode laser enables finer processing of non-metal materials and cuts thicker materials effortlessly.

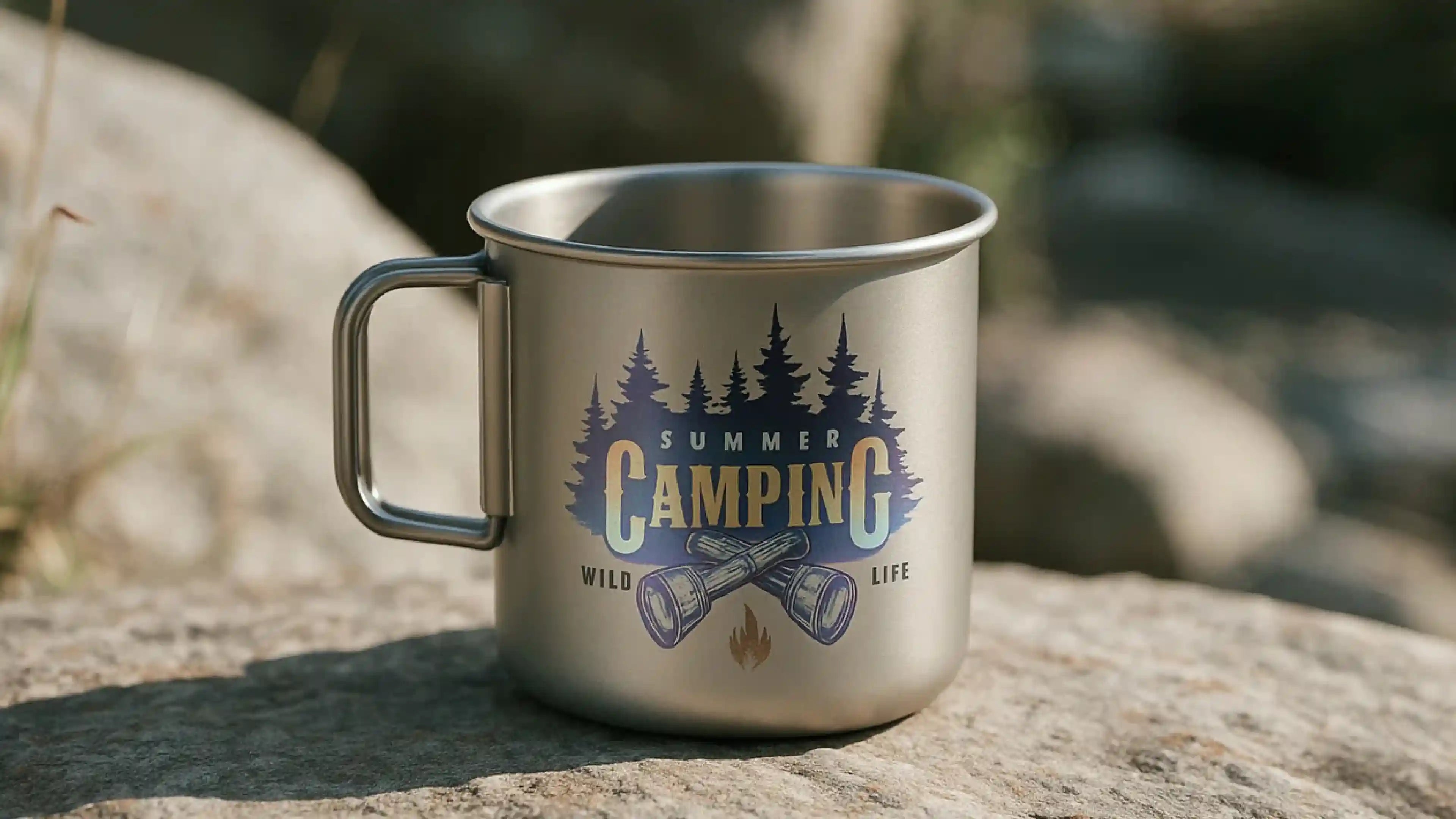

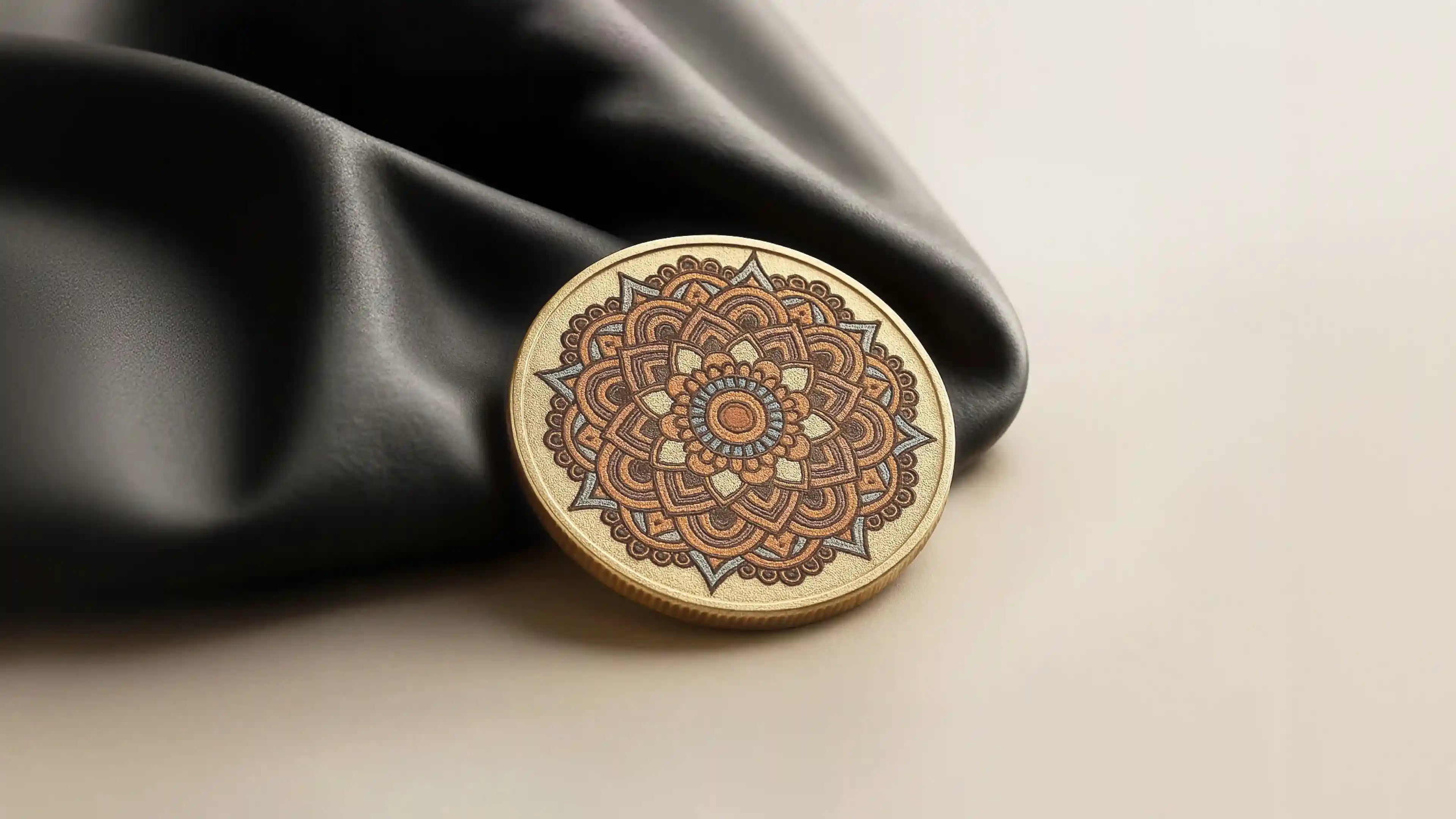

Color Engraving Becomes MoreAccurate and Easier
With our advanced 60W MOPA laser, you can achieve richer tones, finer gradients, and even holographic effects on metal. What truly sets xTool apart is our precisely calibrated structure and premium optical system—engineered to minimize variation and maximize consistency.

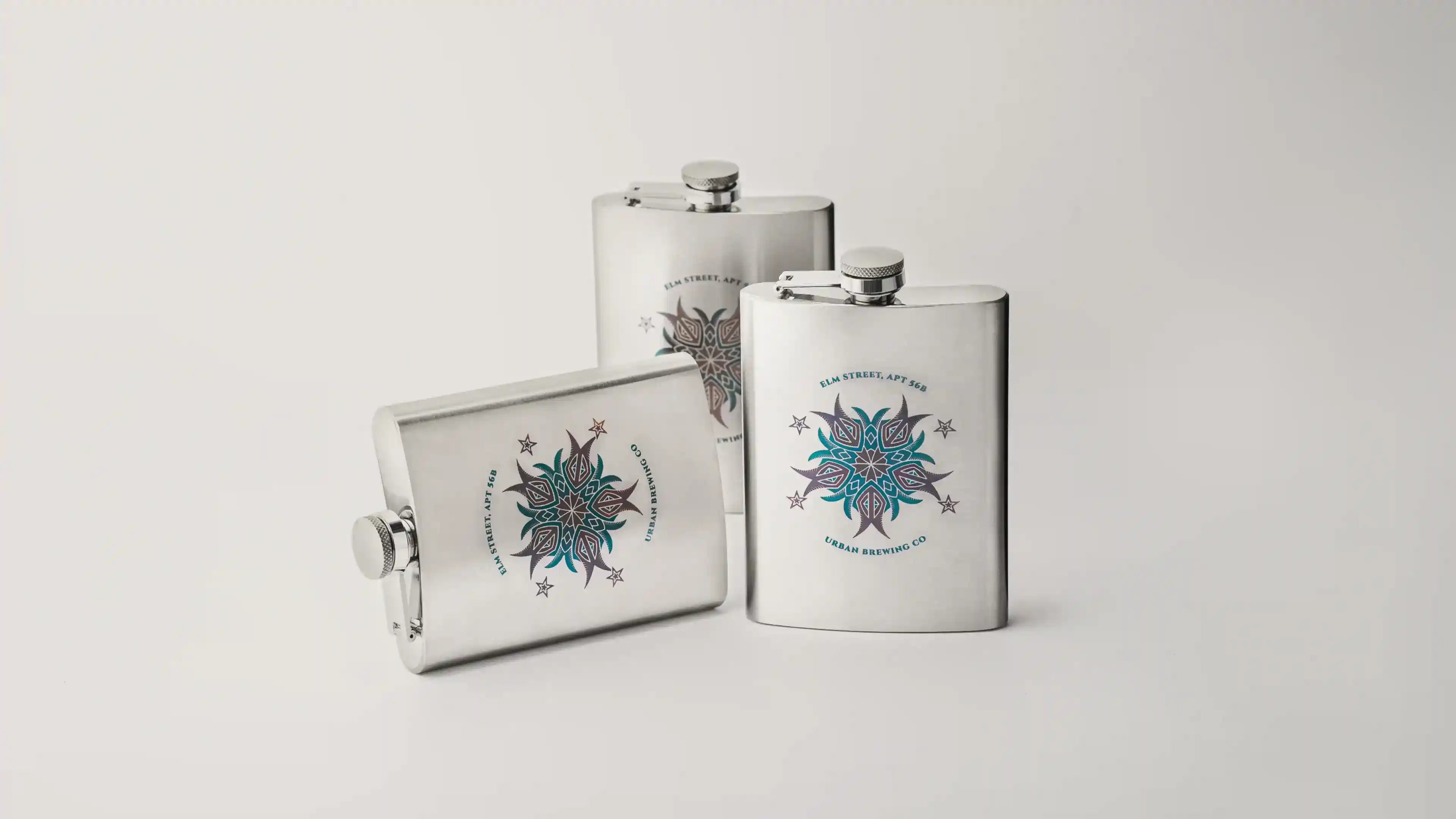

100+ Vibrant Colors, Remarkably Consistent
Delivers over 100 consistent colors on stainless steel and titanium, spanning 7 color spectrums and taking your designs far beyond black and white.

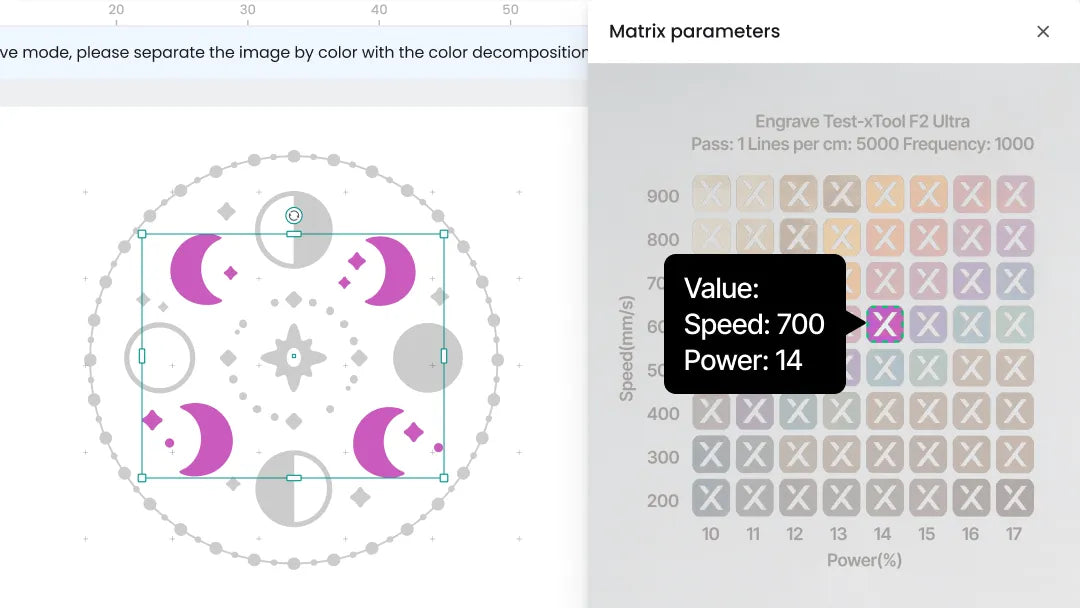

Get Your Color Palette in One Click
Pre-set color files in XCS let anyone create a personal color palette and easily find the right settings for any color. Color engraving is now easier than ever.

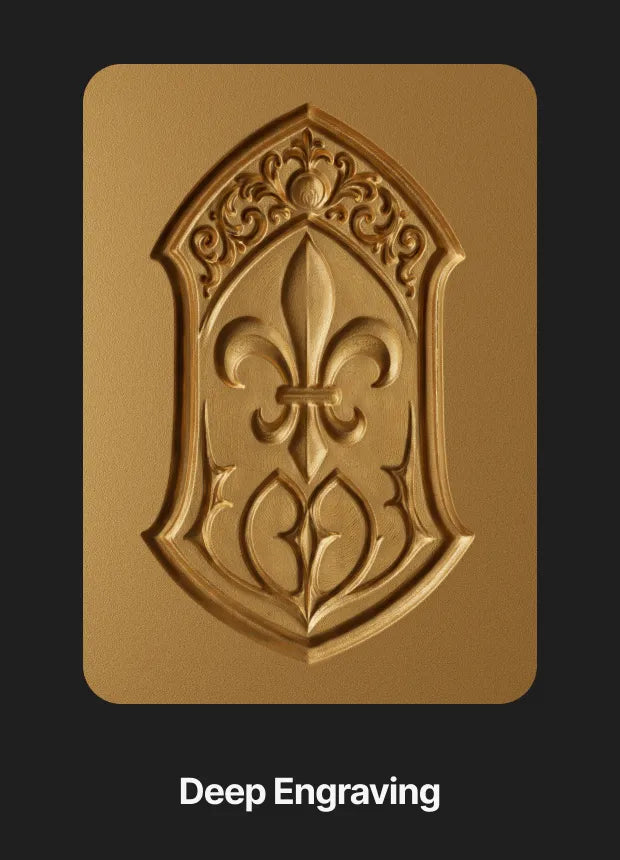

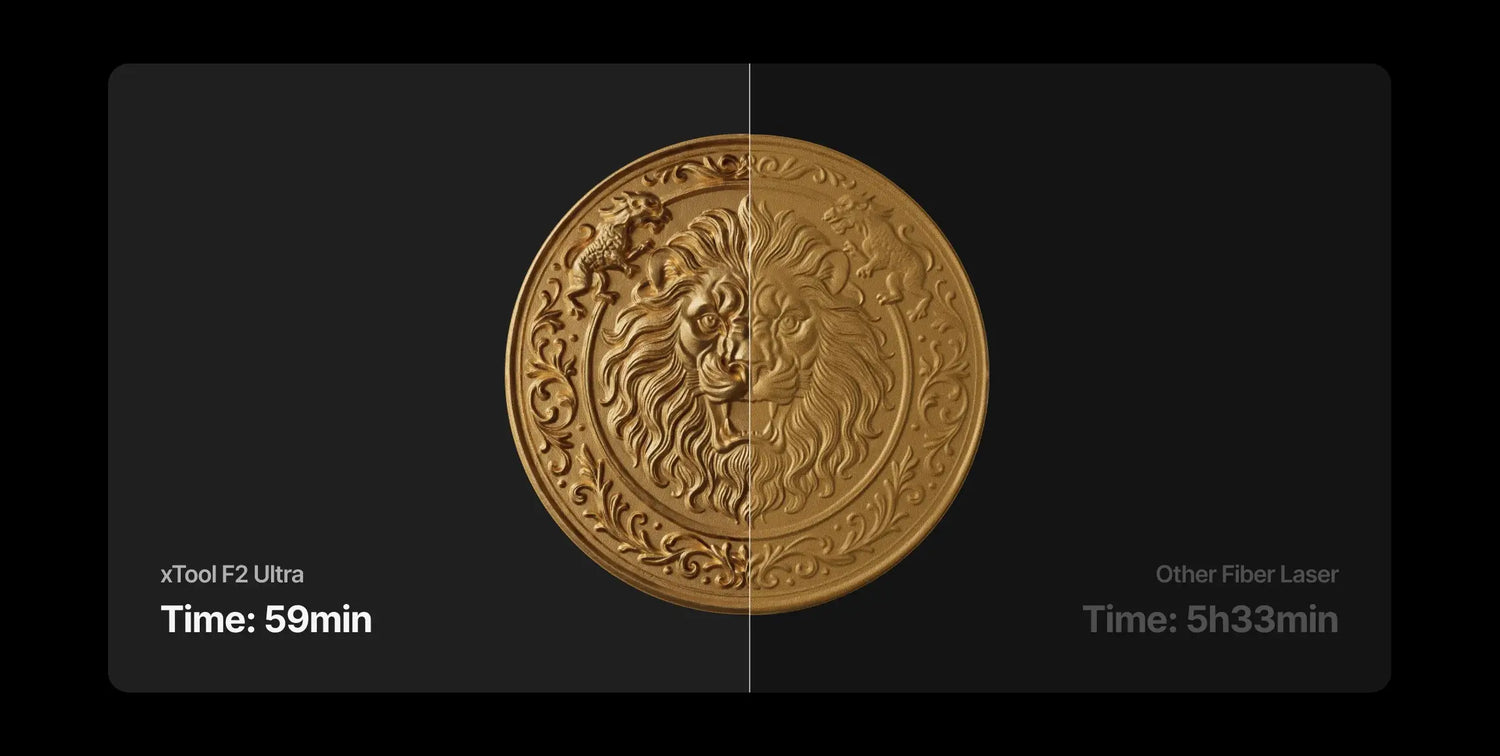

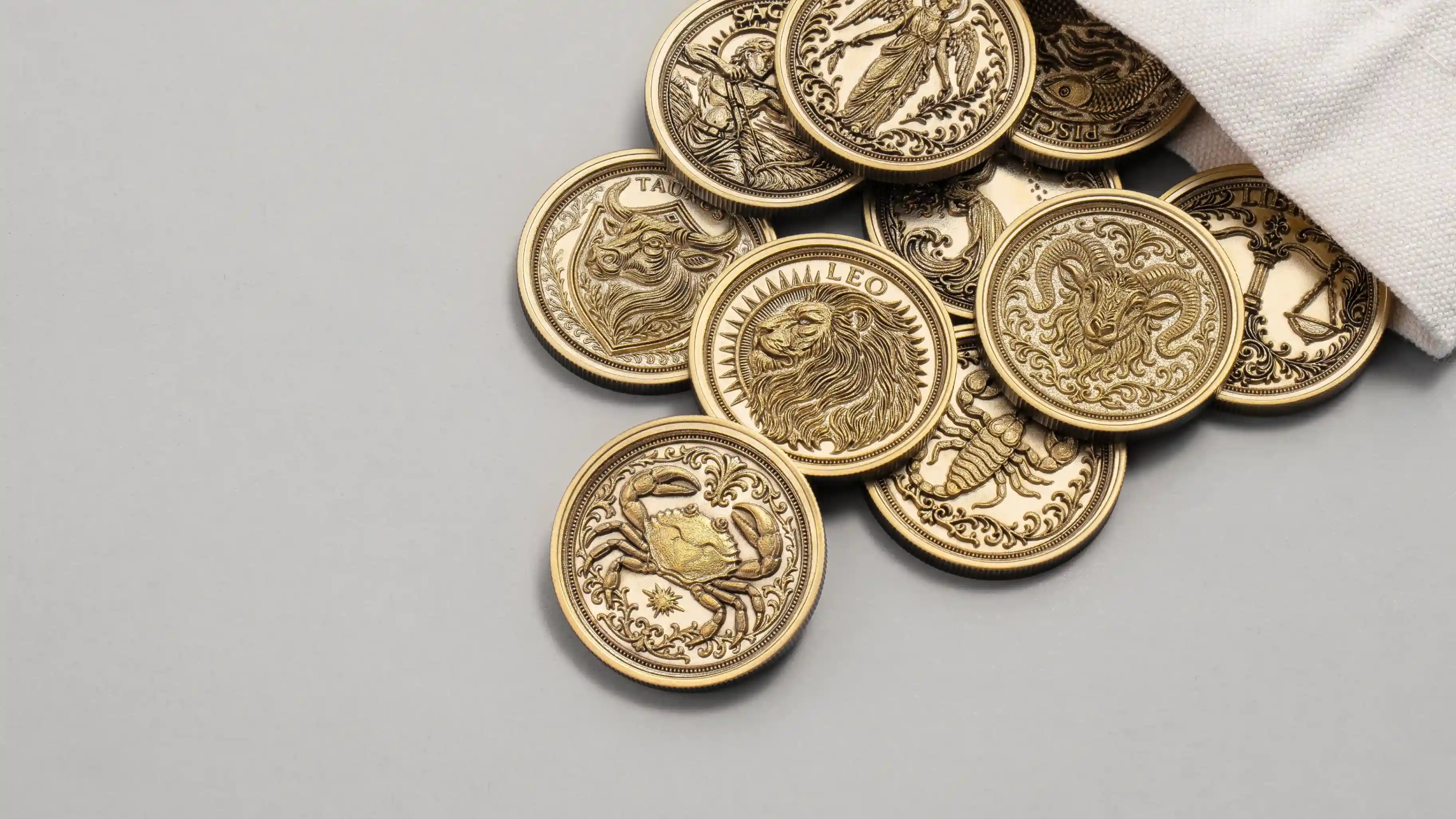

Deep Engraving Done Faster,with More Detail
60W MOPA cuts metal faster and deeper, creating crisp textures and layered reliefs that lower-power lasers can’t match. Adjustable pulse width and frequency give you precise control to reveal the finest details in every design.

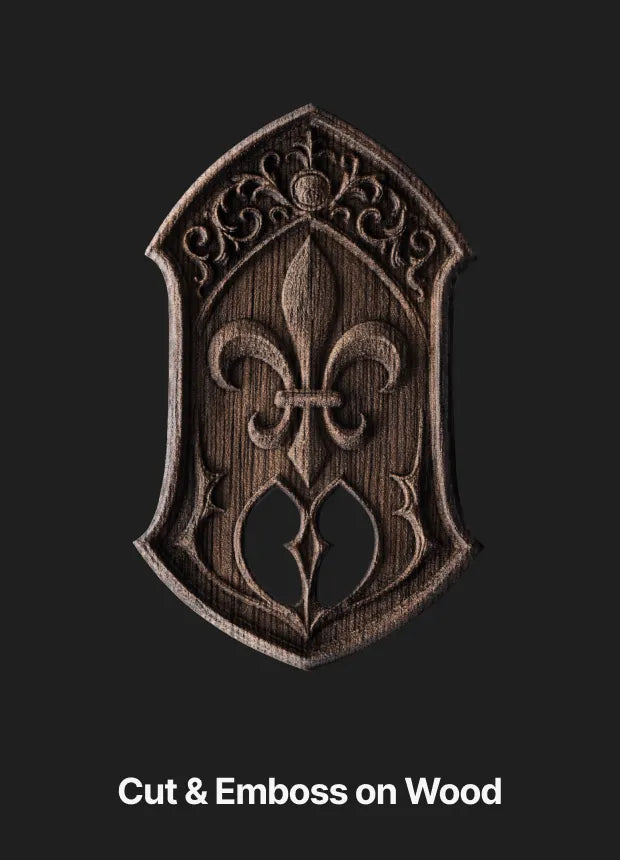

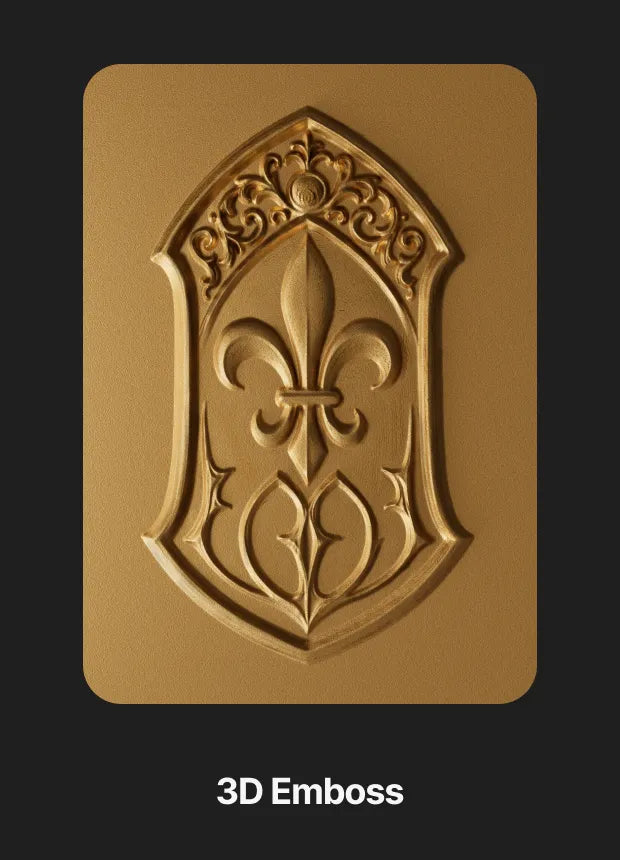

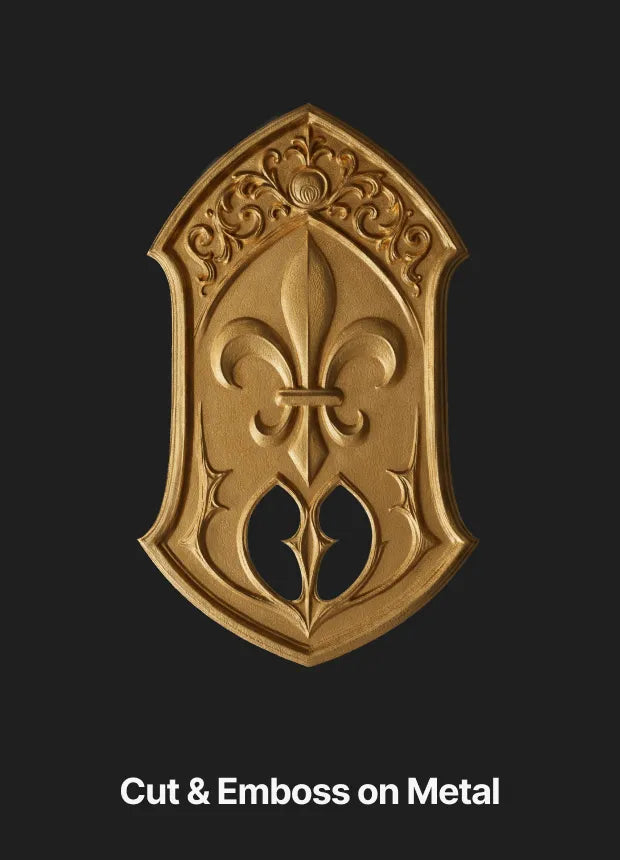

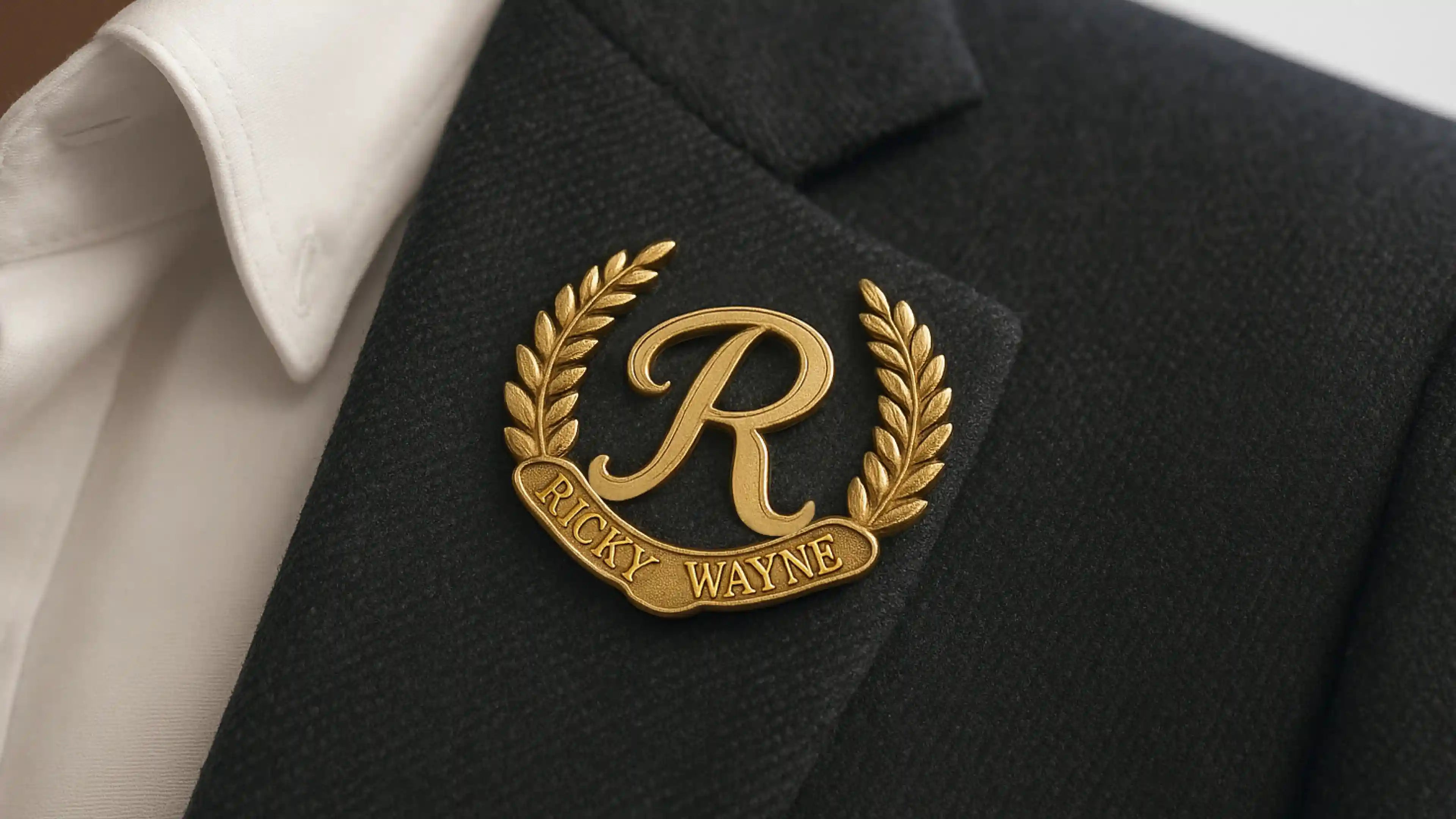

From 2D to 3D, Made for Every Masterpiece
Effortlessly Cutting
2mm Metal
The 60W MOPA laser enables cutting metals up to 5 times thicker than a 20W fiber laser.
Effortlessly Cutting
20mm Acrylic
The 40W diode laser cuts acrylic up to 20mm thick through multiple passes, delivering clean edges.

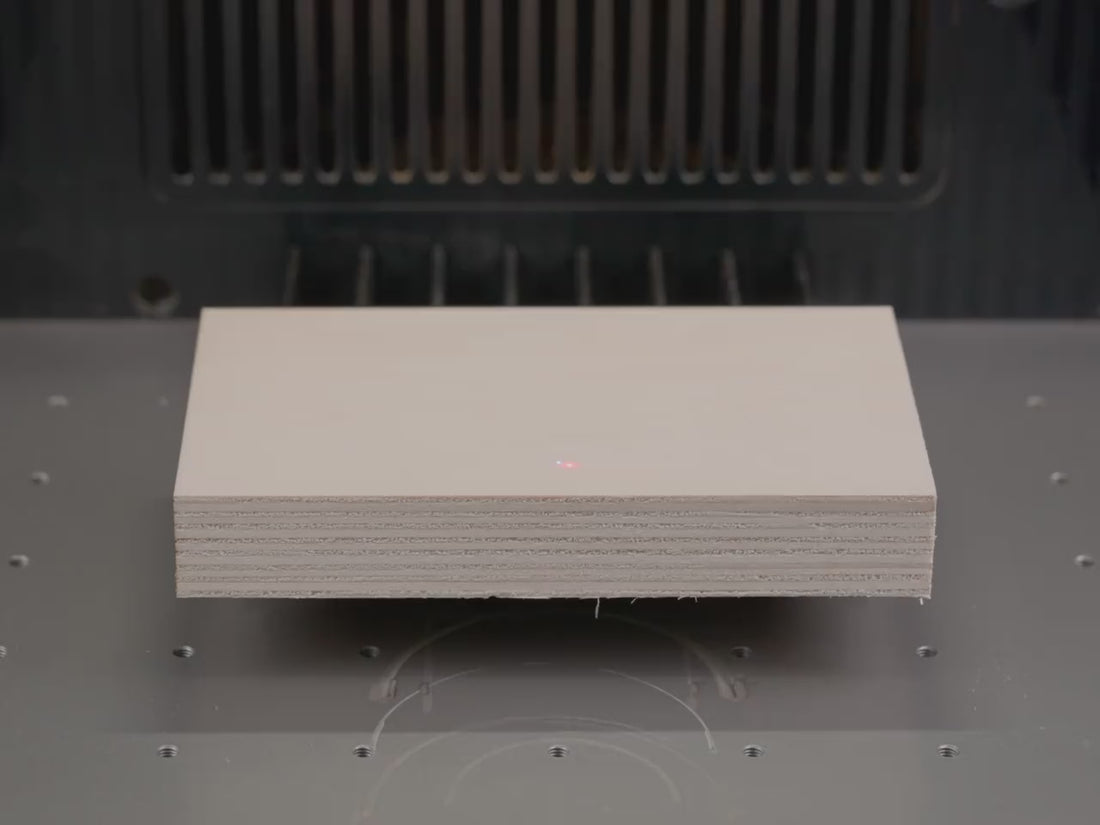

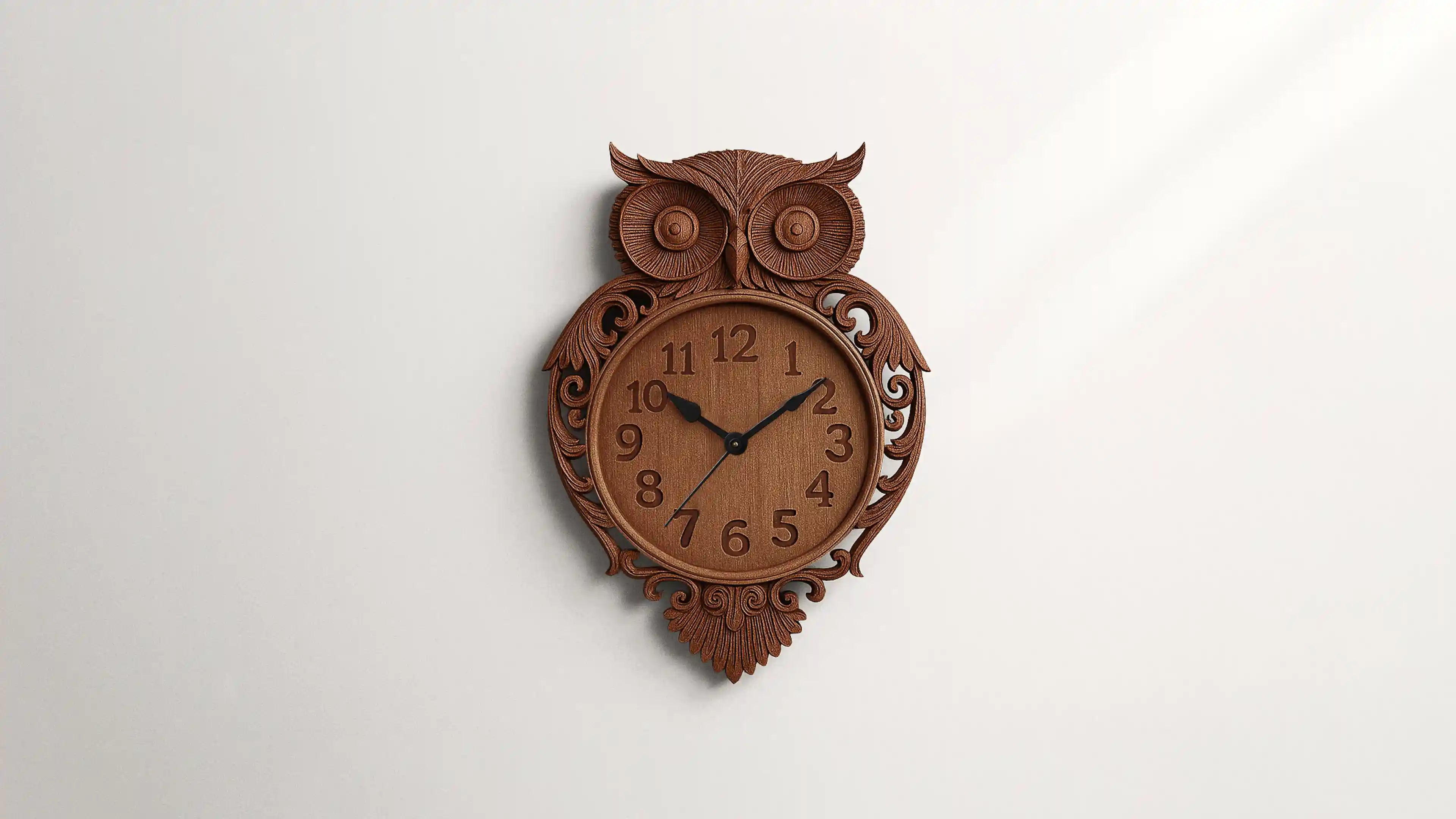

Effortlessly Cutting
23mm Wood
The 40W diode laser cuts wood up to 23mm thick through multiple passes,delivering deeper cuts with less burning.
AI Drives the Entire Process with One Click
From material detection to settings and preview, it simplifies every step for you.

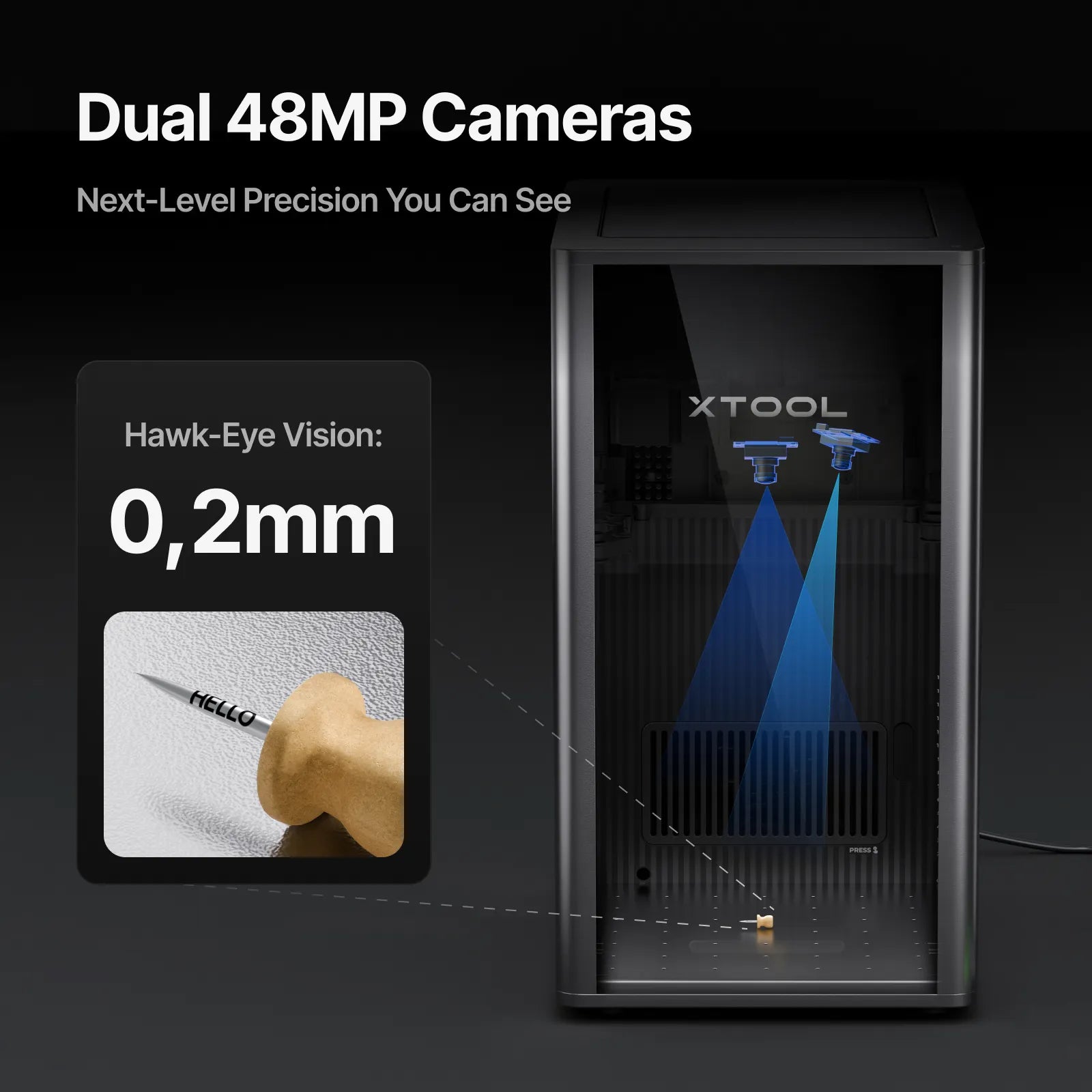

Dual AI Cameras with Hawk-Eye Vision, Boosting Precision by 60%
Two 48MP cameras in F2 Ultra boost accuracy to 0,2mm—60% improvement over single-camera systems.

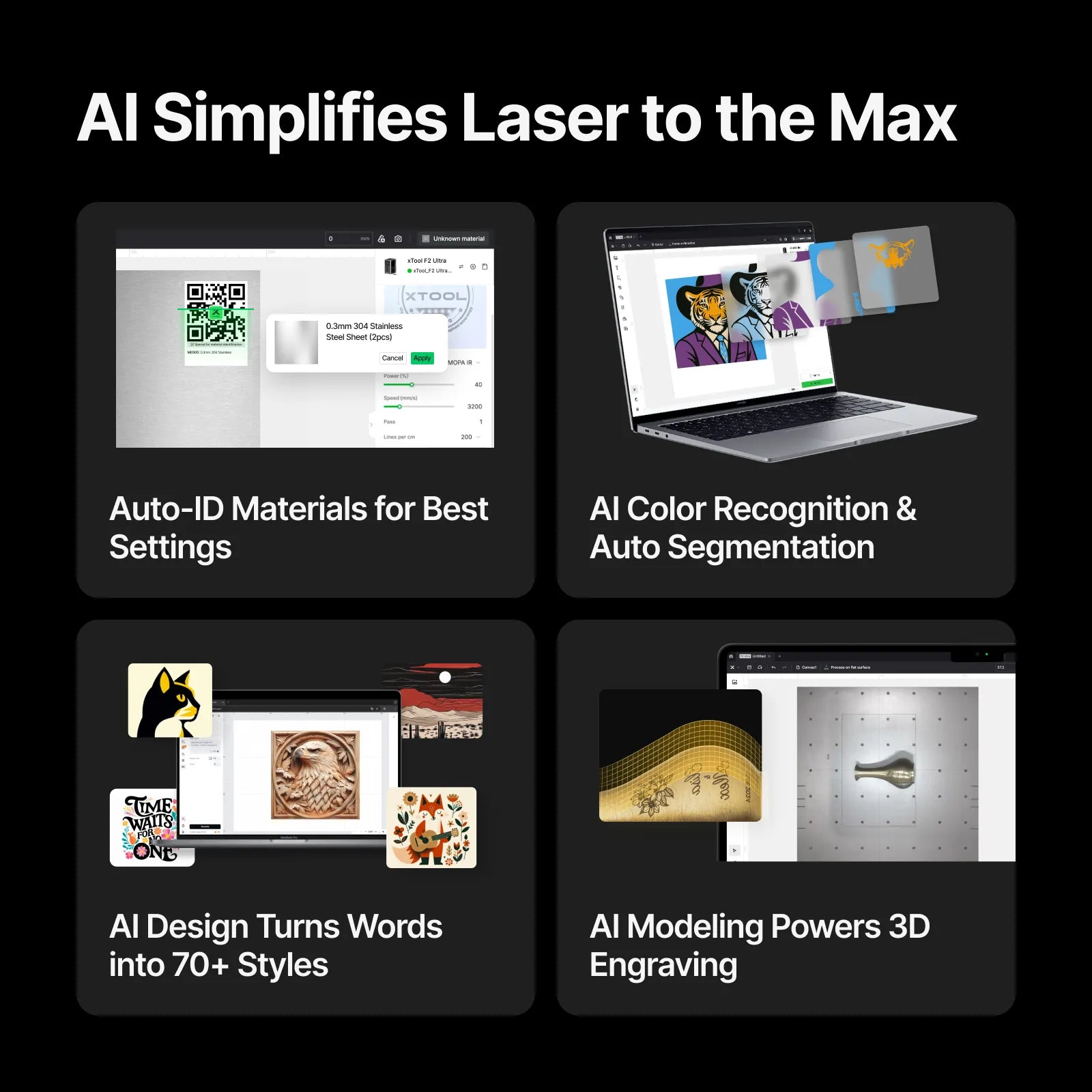

AI Powers Every Step You Take
-

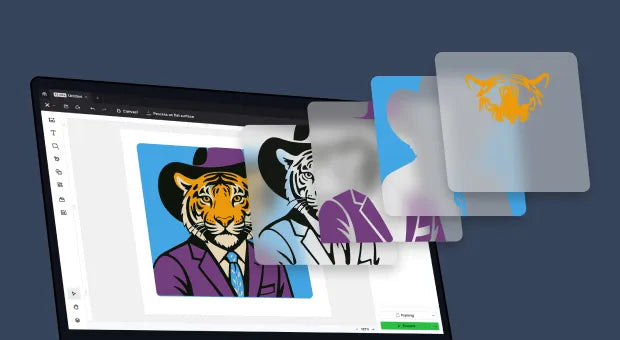

AI Color Recognition
Upload an image, and AI will automatically segment the colors, allowing you to quickly set parameters for each one.
-

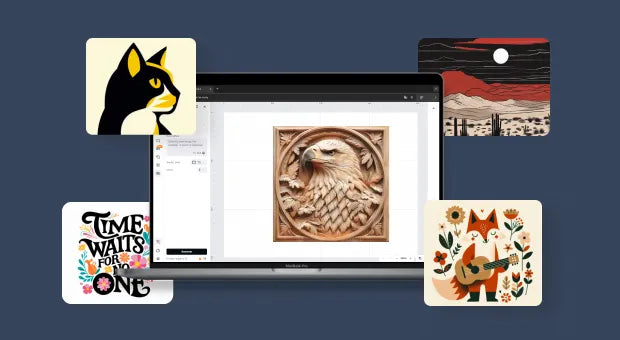

AI Design
AI image generation helps transform your words in 70+ styles within minutes, making every project truly unique.
-

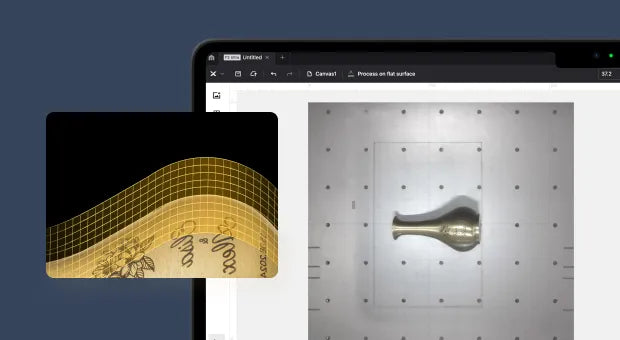

AI Modeling
Smart 3D modeling lets you engrave objects of any shape or size easily and accurately.

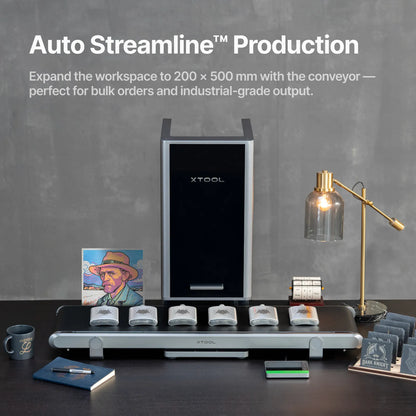

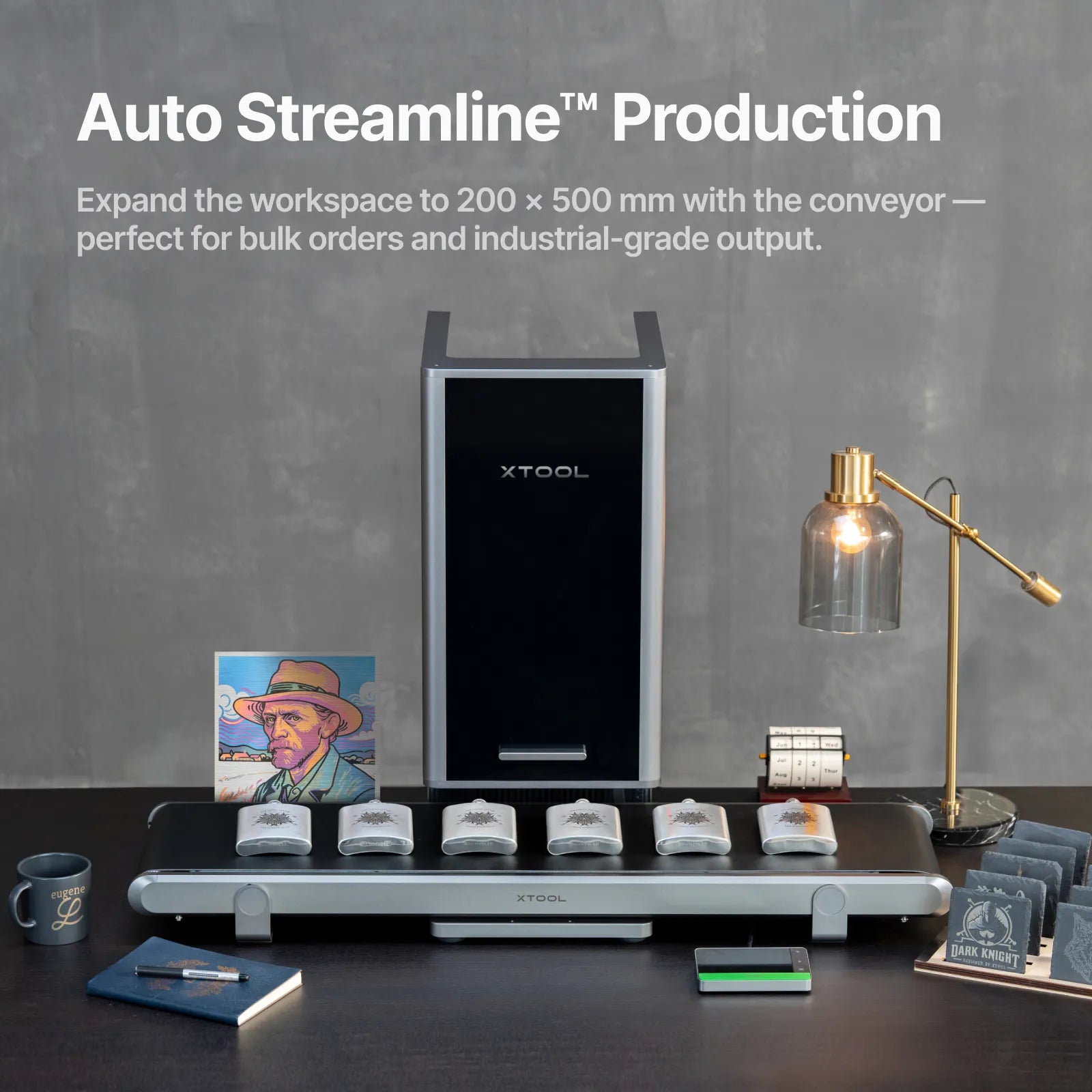

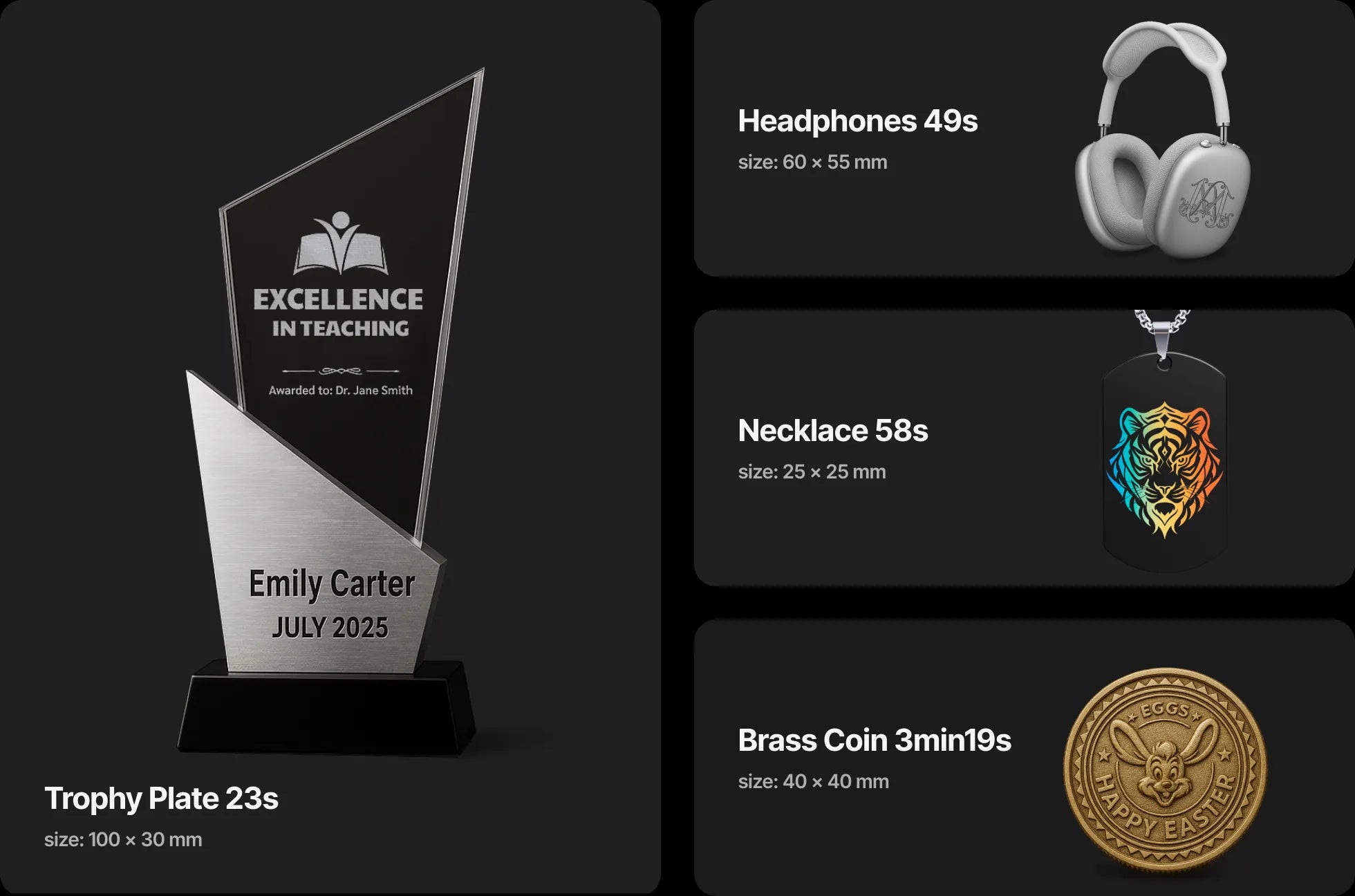

Smarter, Batch Process for Industrial-Grade Output
From layout to batch positioning, F2 Ultra streamlines your workflow with smart fill — so you're always ready for bulk orders.

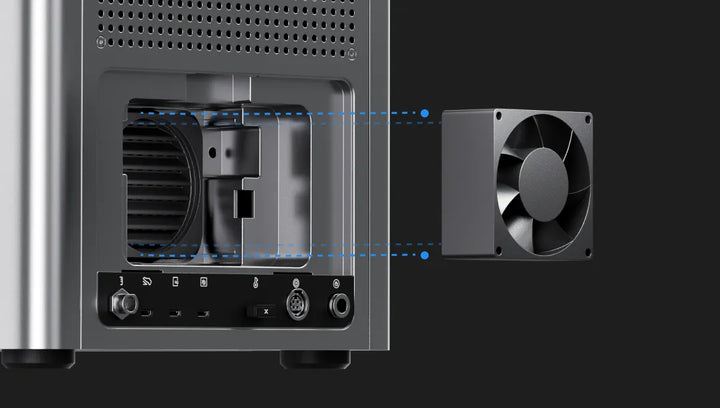

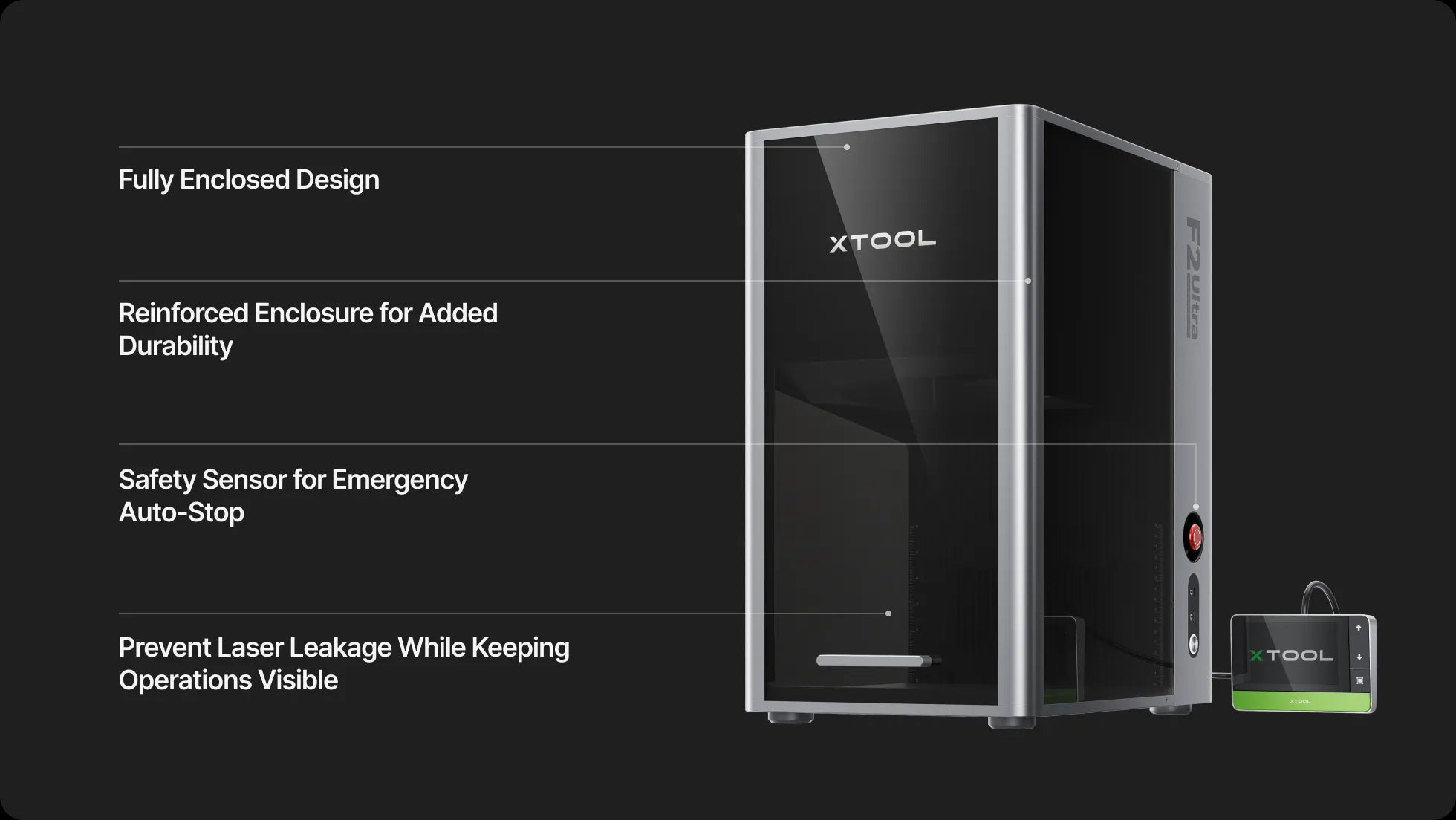

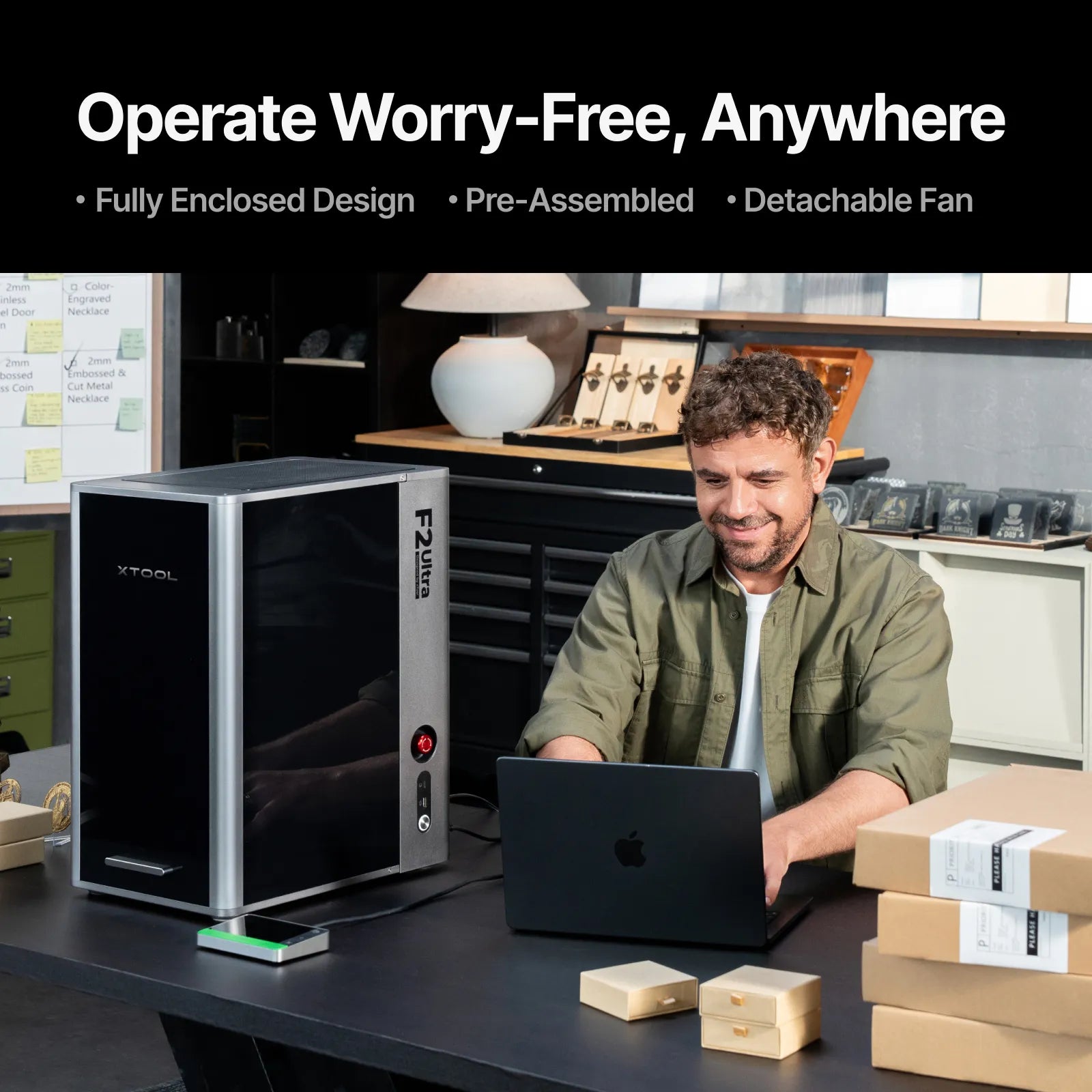

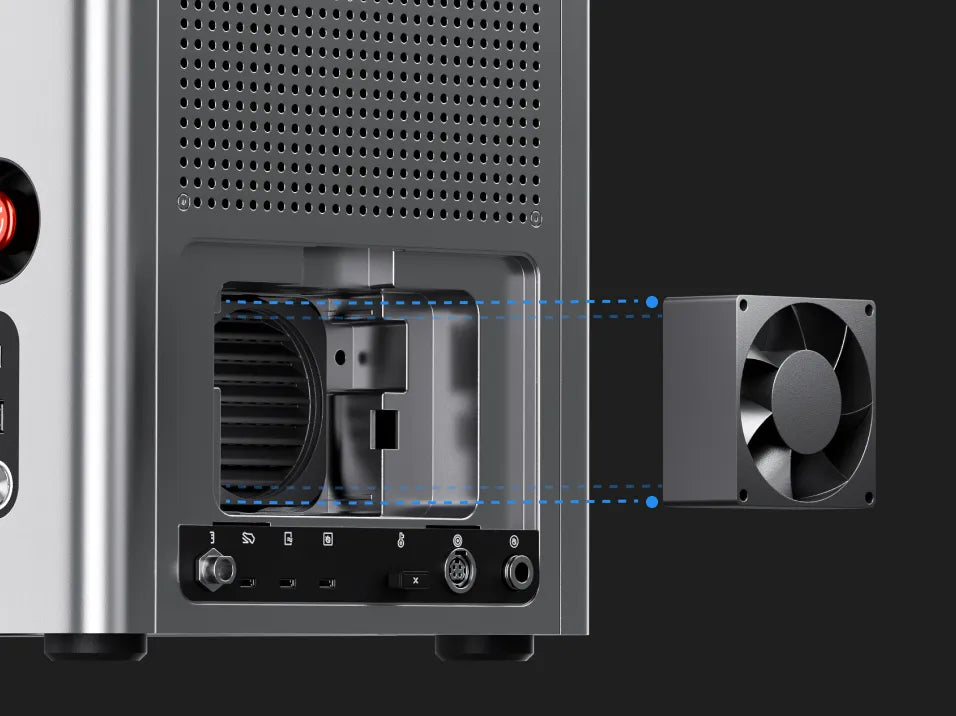

Always Safe and Easy to Maintenance
Every Detail Matters for a Better Experience
Specifications
Buy NowProcessing Capacity
| Laser Type | F2 Ultra : 40W Diode + 60W MOPA Laser | F2 Ultra (single): 60W MOPA Laser |
| Processing Mode | Laser Engraving | Laser Cutting |
| Laser Cuttable | Diode Laser -> Paper, Wood, Leather, MDF, Felt, Some Dark Opaque Acrylic | Mopa Laser -> Brass, Stainless Steel, Aluminum |
| Laser Engravable | Diode Laser -> Paper, Wood, Leather, MDF, Stainless steel, Some Dark Opaque Acrylic, Bamboo, Fabric, Dark Glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated Metal, Painted Metal | Mopa Laser -> Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold |
| Working Area | 220 mm × 220 mm or 220 mm × 500 mm (with conveyor) |
| Max. Working Speed | 15.000 mm/s |
| Max. Laser Cutting Capacity (Basswood) | 23mm in Multiple Passes |
| Max. Laser Cutting Capacity (Acrylic) | 20mm in Multiple Passes |
| Max. Processing Height | 150mm |
| Max. Rotary Engraving Diameter | 150mm |
| Supported Software | xTool Creative Space/Atomm |
| Operating System | Windows/macOS |
| Connection Method | USB/Wi-Fi/IP |
| Supported Files | SVG/DXF/JPG/JPEG/PNG/BMP/TIF |
| AImake Compatibility | Yes |
| Pre-assembled | Yes |
| Built-in Camera | 48 MP Dual Cameras |
| Positioning Method | Camera Positioning |
| Focus Mode | Autofocus |
| Ranging System | N/A |
| Preview Method | Smart Camera Preview |
| Laser Spot Size | 0,09*0,1mm (40W Diode Laser) | 0,03*0,03mm (60W MOPA Laser) |
| Positioning Precision | 0,2 mm |
| Ranging Precision | 0,2 mm, Camera |
| Image Resolution | N/A |
| Motion Accuracy | 0,00482 mm |
General Information
| Safety Certification | Class 4 Laser Safety |
| Product Size | 294 mm x 429 mm x 521 mm |
| Product Weight | F2 Ultra: 21.6kg | F2 Ultra(single): 20.8kg |
| Max. Machine Input Power | 400W |
| Power Adapter Input Voltage | 220 V - 240 V, AC 50/60 Hz |
Συχνές Ερωτήσεις

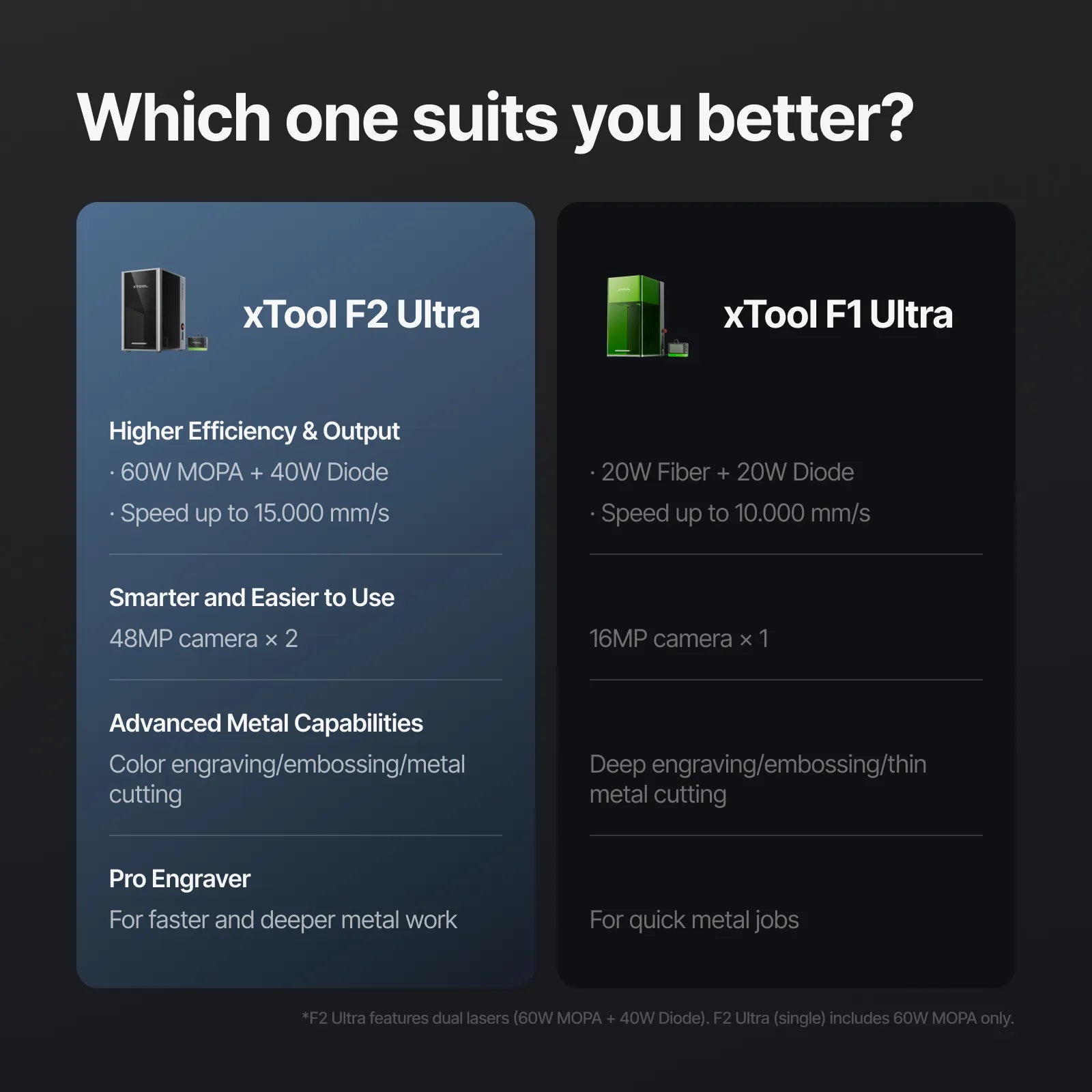

What's the difference between F2 Ultra, F2 Ultra (Single), and F1 Ultra?
F2 Ultra : Equipped with both a 60W MOPA fiber laser and a 40W diode laser. Best for users who want maximum versatility in materials and processes. Supports color marking on metals, deep engraving, cutting, and processing on non-metal materials.
F2 Ultra (single) : Equipped with only the 60W MOPA fiber laser. Better for users who mainly work with metal materials.
F1 Ultra : Uses a Q-switched fiber laser, equipped with both a 20W fiber laser and a 20W diode laser, a single camera, speeds up to 10.000 mm/s. Best for standard metal marking and entry-level needs.
What’s the max engraving depth or cutting thickness for metals?
The F2 Ultra can cut brass up to 2mm, stainless steel up to 2mm, aluminum up to 1mm. Engraving depth depends on the material and settings, but the 60W MOPA fiber laser ensures deep and precise results across a wide range of metals.
What materials can be engraved with F2 Ultra?
F2 Ultra can engrave almost all materials. Metals like gold, silver, aluminum, stainless steel (with multiple colors), platinum, titanium (with multiple colors), and others. Non-metals like wood, acrylic, plastic, slate, glass, paper, cardboard, and others.
How large is the working area provided by xTool F2 Ultra?
The working area is 220 × 220 mm and 220×500 mm with the conveyor.
