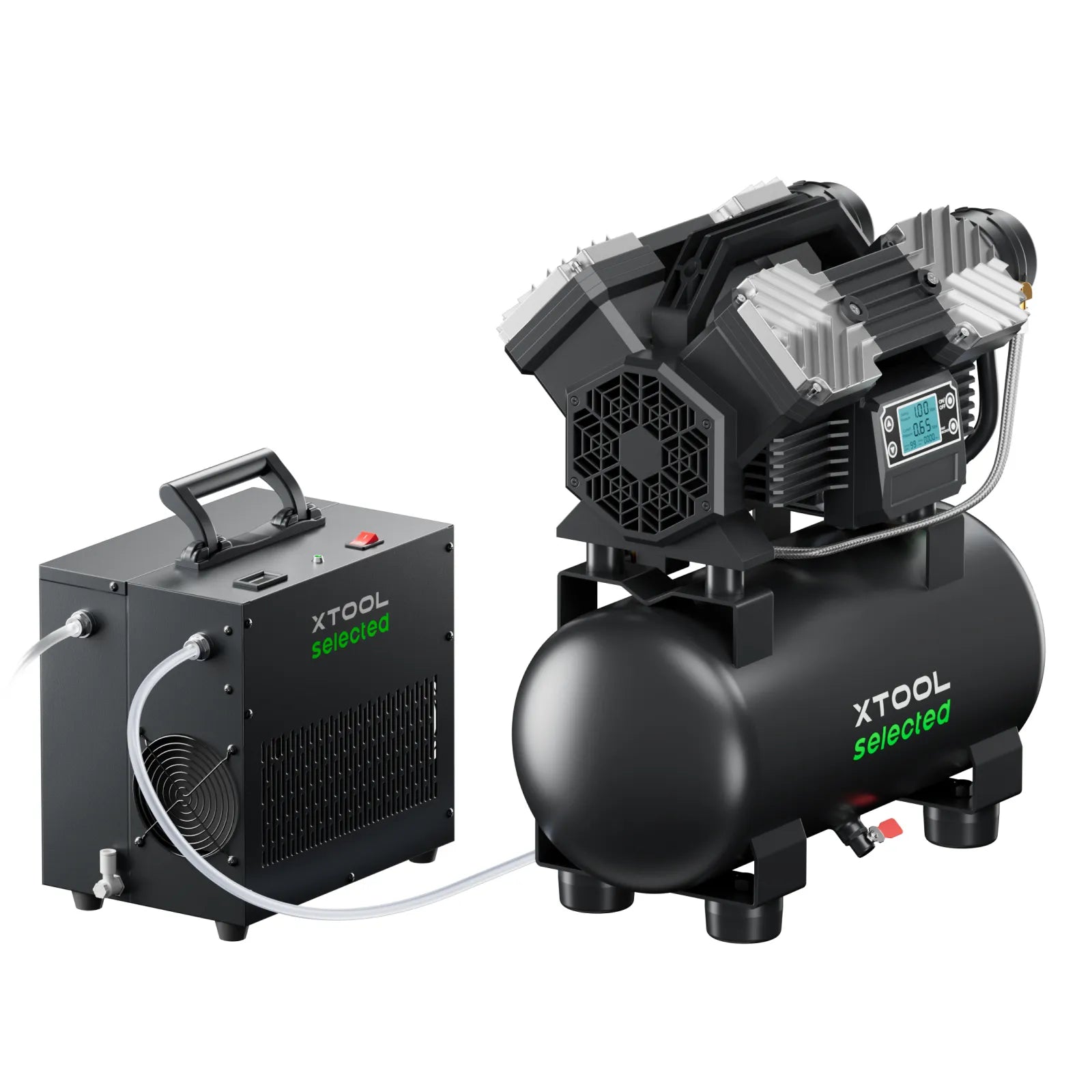

xTool Selected Air Compressor & Air Dryer
Η τιμή δεν περιλαμβάνει ΦΠΑ. Ο ΦΠΑ υπολογίζεται στο ταμείο.
The xTool Selected Air Compressor & Air Dryer delivers powerful, cost-efficient gas support for metal cutting. Achieve burr-free results on 4 mm stainless steel, 4 mm aluminum, and 3 mm brass at 6 bar using the xTool SaveGas™ system. Its HyperPure™ 3-stage filtration removes 99.999% of oil and rust and 99.99% of moisture, ensuring flawless cuts. Compact at just 0.066 m³, it offers industrial performance in a space-saving form, with up to 10 bar pressure, 14.1 CFM airflow, and stable operation from −10 °C to 40 °C.
Δεν ήταν δυνατή η φόρτωση της διαθεσιμότητας παραλαβής
Payment & Security
Είμαστε εδώ για να βοηθήσουμε
Αν έχετε ερωτήσεις για κάποιο προϊόν, αν χρειάζεστε προσφορά χονδρικής, εξειδικευμένη συμβουλευτική ή θέλετε να κλείσετε ραντεβού για demo, η ομάδα μας είναι πάντα στη διάθεση σας

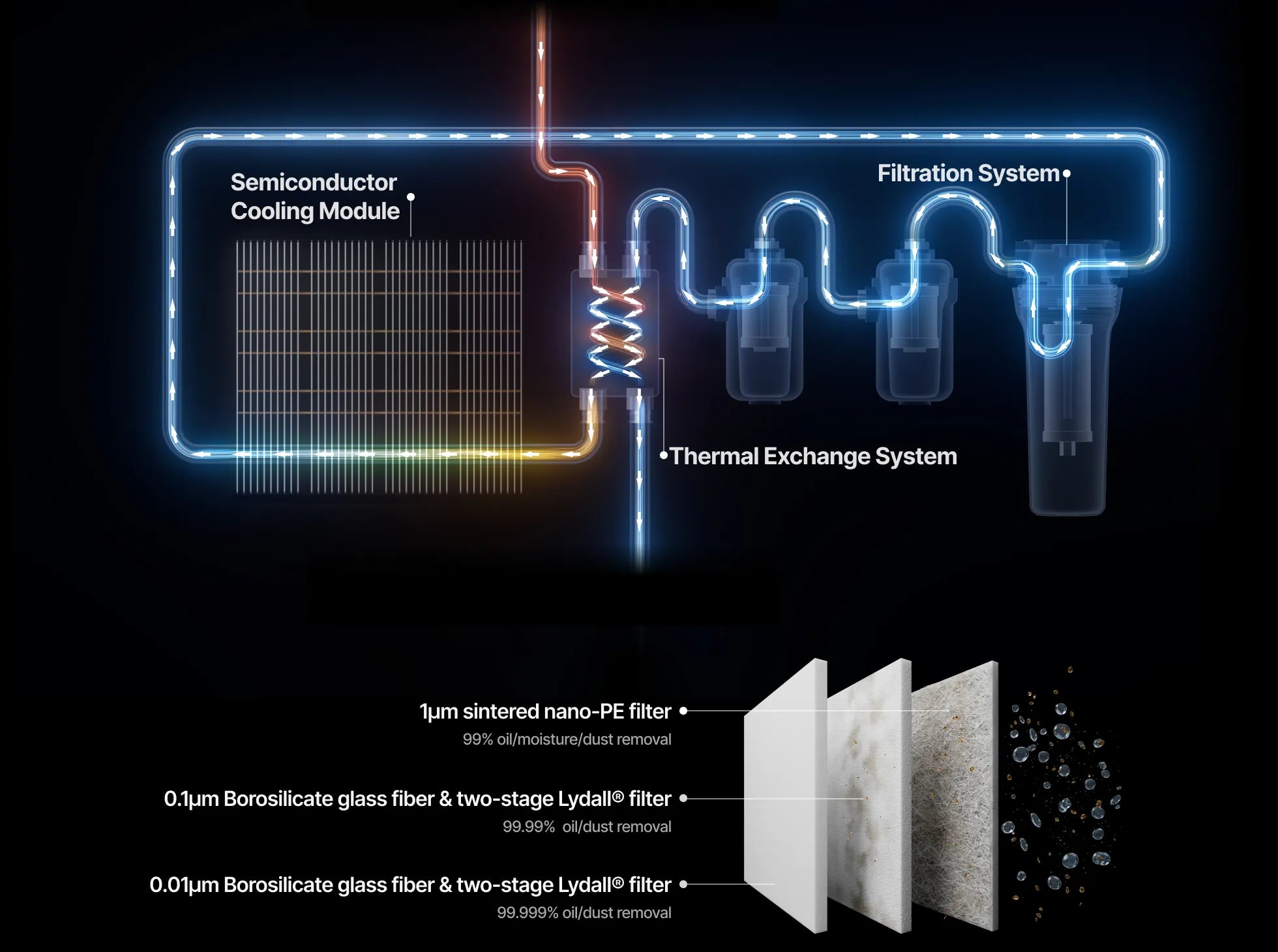

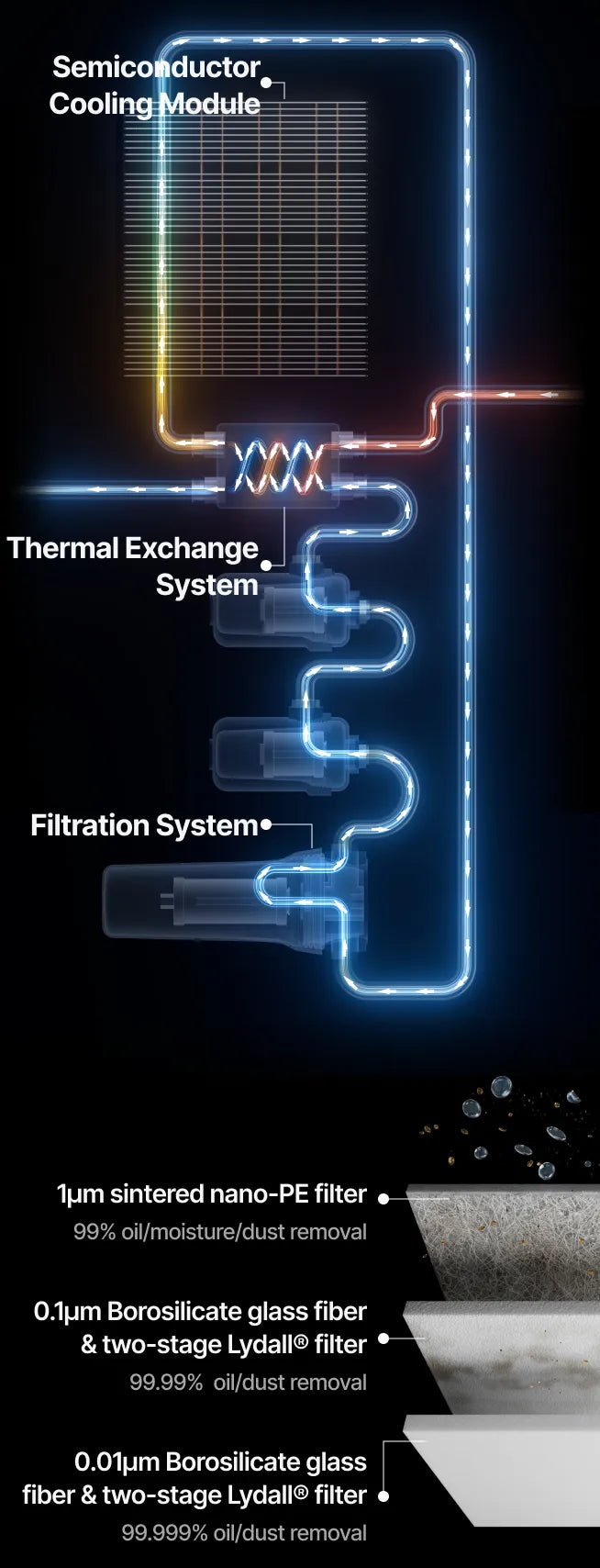

HyperPure™ Filtration System
xTool Ary Dryer applies a triple-stage industrial-grade filter that removes 99% of moisture, impurities, and oil to guarantee ultra-clean, dry air for peak cutting performance!
99% Moisture Drying
36°F Dew Point
99.999% Oil Removal
0.01 ppm
99.999% Dust Removal
0.01 ppm

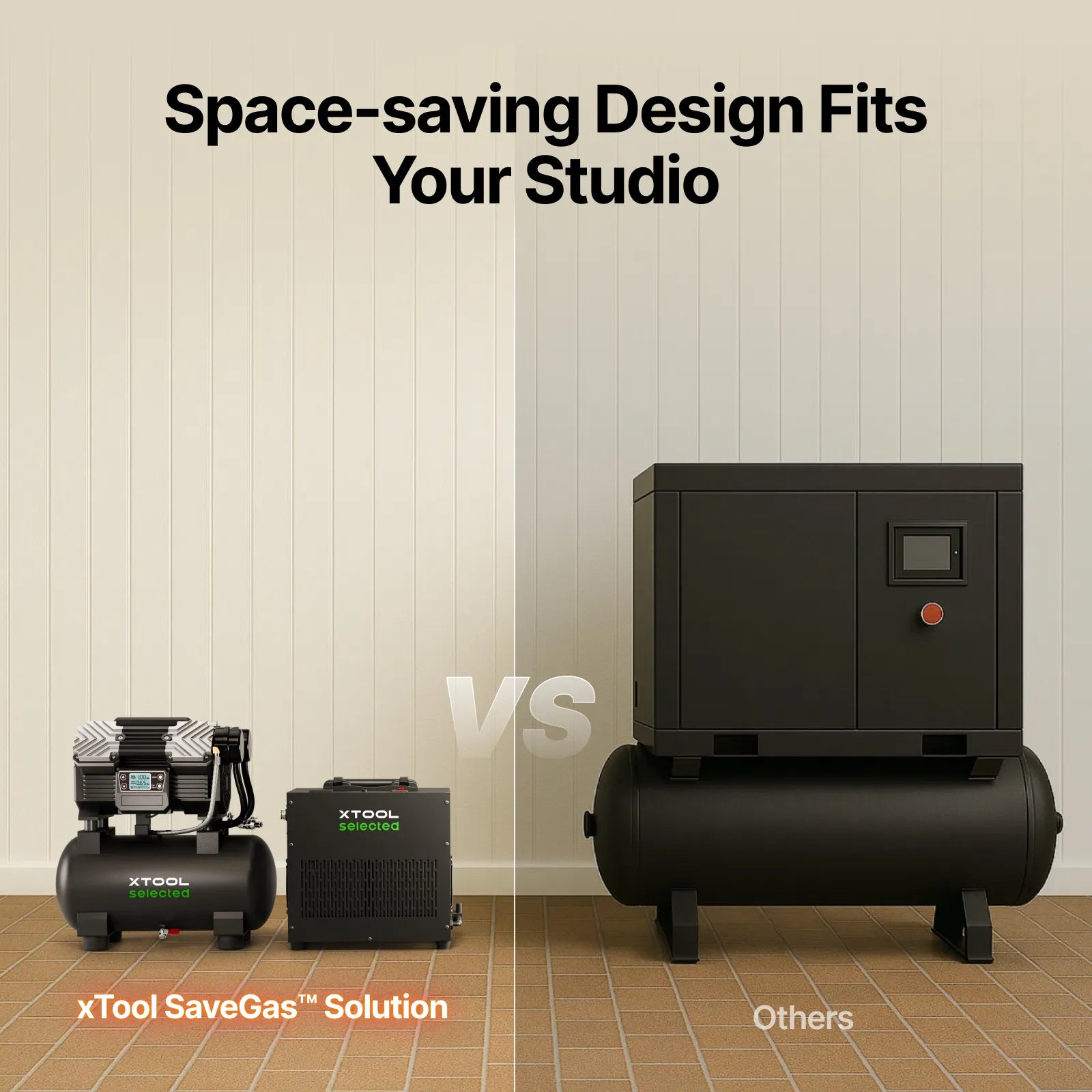

Space-saving Design Fits Your Studio
Nobody offers such a compact yet powerful air system for metal cutting! At just 0.066 m³ in size—providing equal performance but smaller than industrial units and more convenient than gas cylinders. You can lift it easily with one hand!
45s Air Generation, Non-stop Cut
Powered by a 2,200W motor and a 20L gas tank, xTool Air Compressor delivers stable, continuous air pressure over 6 bar(0.6MPa), achieving non-stop cuts. It recovers from 0 to 10 bar in just 45 seconds, enhancing your metalwork efficiency.
Quality Guaranteed, Built to Lastv
xTool Air Compressor and Air Dryer can operate reliably for 2,400 hours even in environments ranging from -10℃ to 40℃, leading to a longlasting use.
Specifications
Buy NowxTool Selected Air Compressor
| Max. Air Pressure | 10 bar (1,0 MPa) |
| Working Air Pressure | 6 bar to 7,9 bar (0,6 MPa ~ 0,79 MPa) |
| Max. Air Flow | 12,4 SCFM (350 L/min) |
| Tank Capacity | 5,3 Gallon (20L) |
| Rated Power | 3,0 HP (2200 W) |
| Recovery Time | 45s from 0 to 10 bar (0~1,0 MPa) |
| Product Dimensions | 460 mm × 530 mm × 270 mm |
| Product Weight | 16 kg |
| Operating Voltage | 220 V |
| Pipe Diameter | 10 mm |
| Working Temperature | -10 ℃ ~ 40 ℃ |
xTool Selected Air Dryer
| Filtration Efficiency | 99% moisture drying, 99.999% oil/rust removal |
| Max. Allowable Airflow | 14,1 CFM (400L/min) |
| Max. Allowable Air Pressure | 12,5 bar (1,25 MPa) |
| Dew Point | 2 ℃~10 ℃ |
| Air Inlet Temperature | 45 ℃ |
| Rated Power | 0,51 HP (380 W) |
| Product Dimensions | 402 mm × 355 mm × 227 mm |
| Product Weight | 10,8 kg |
| Operating Voltage / Current | 220 V; 2,6 A |
| Pipe Diameter | 10 mm |
| Working Temperature | -10 ℃ ~ 40 ℃ |
Συχνές Ερωτήσεις
Can I use the air compressor separately?
No, the air compressor and air dryer must be used together. Otherwise, compressed air containing moisture, oil, and dust will enter the welding gun and air lines, which will not only degrade cutting performance but also damage the equipment.
ㅤ
So now we don't offer an option of purchasing xTool air compressor separately.
Can I use the xTool air dryer with my own air compressor?
Yes, but the air compressor should meet strict requirements:
To achieve best cutting eeffcts, xTool air dryer should be used with an air compressor that has a rated pressure over 10 bar (1,0MPa), air flow over 7CFM@6 bar (200L/min@0,6MPa) when using the xTool SaveGas nozzle.
ㅤ
Also, the air flow that goes into the air dryer should be lower than 14,1 CFM (400L/min), the air pressure should be lower than 12,5 bar (1,25MPa), the air temperature should be lower than 50℃. Otherwise, it will cause damage to the air dryer and bad cutting effects.
What metals can be cut using xTool's air compressor and refrigerated dryer?
The maximum air pressure output of xTool air compressor is 1.0MPa, stably providing over 0.6MPa during cutting.
ㅤ

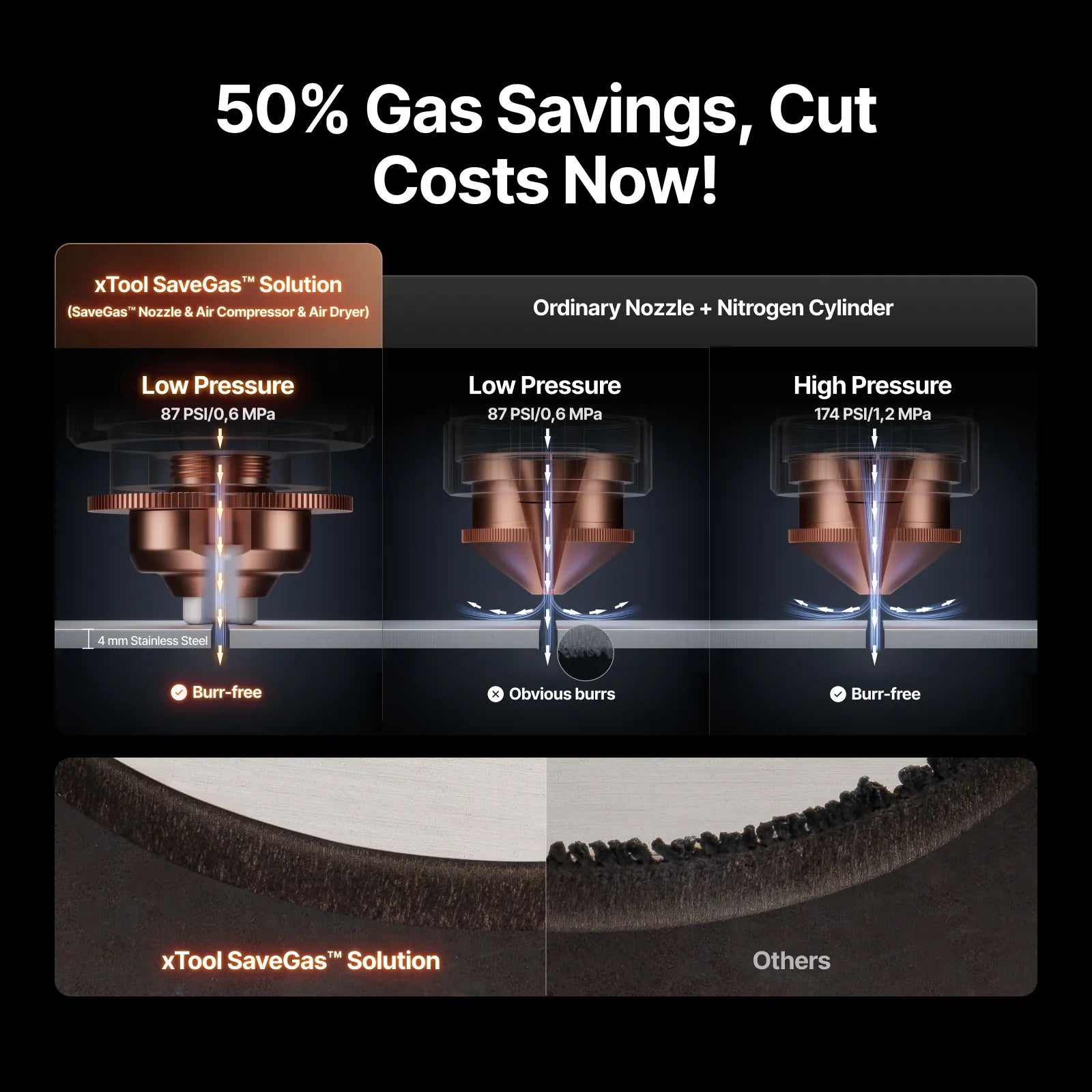

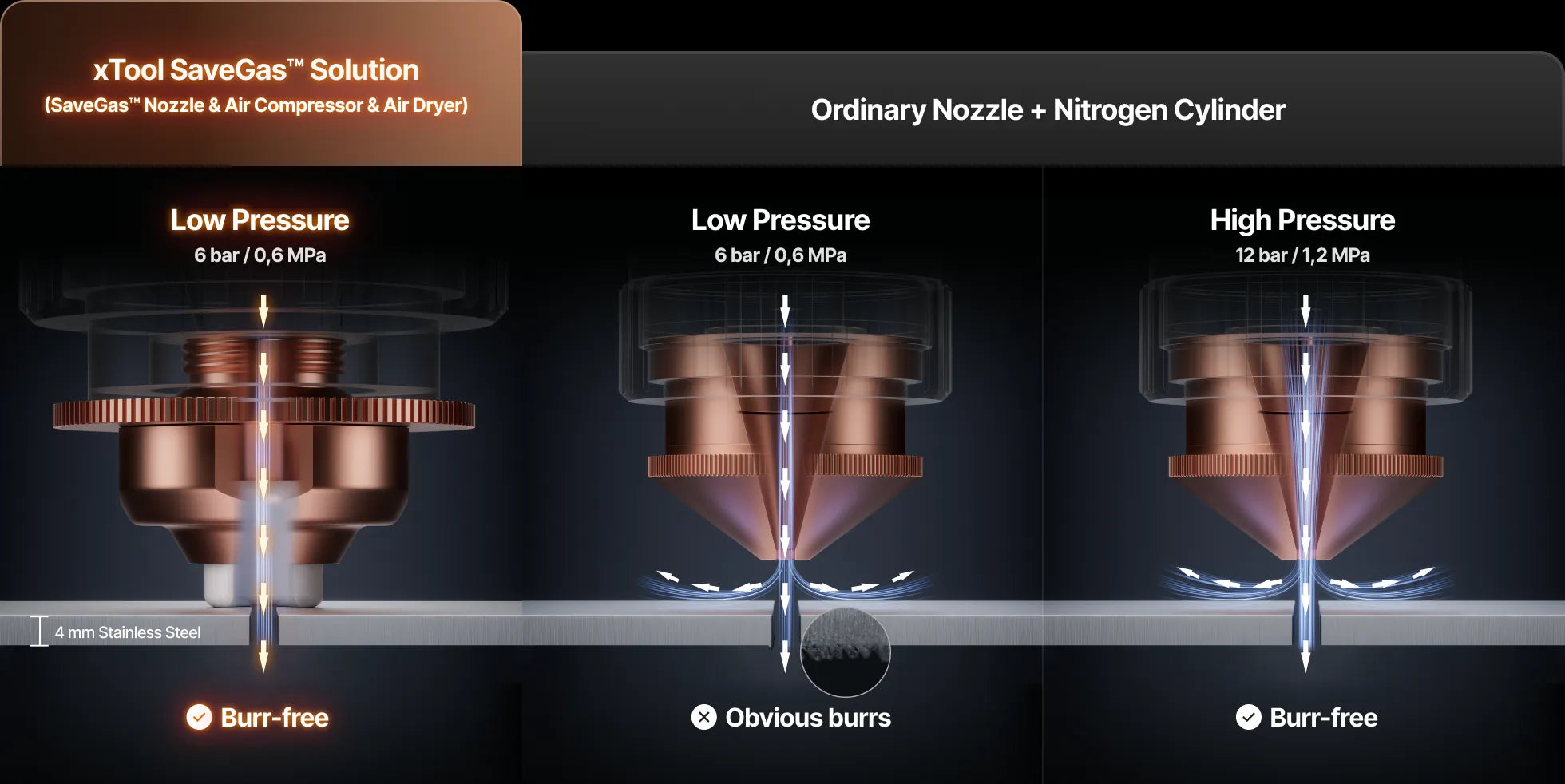

When paired with xTool SaveGas™ Nozzle, it can cut up to 4mm stainless steel, 4mm aluminum, 3mm brass, 1mm carbon steel (ordinary nozzle), and 1mm galvanized steel (ordinary nozzle) with no burrs.
ㅤ
For thicker stainless steel, it is recommended to use nitrogen, argon, or an air compressor with a pressure above 1.2MPa.
ㅤ
For thicker carbon steel, oxygen cutting is advised.
How do xTool air compressor and air dryer differ from other brands?
xTool air compressor is compact yet delivers powerful performance, equipped with a 5.2HP high-power motor that provides up to 1.0MPa pressure and 14.1 CFM airflow, specifically designed for metal cutting.
ㅤ
xTool air dryer features a unique heat exchange module to rapidly cool compressed air and a three-stage precision filter system that removes 99.999% of oil and dust.
ㅤ
Compared to other dryers with only 1 or 2 filtration stages, xTool's filtration efficiency is significantly improved, ensuring longer lifespan and superior cutting results.
How does an air compressor differ from nitrogen or argon gas?
Lower cost: Nitrogen/argon cylinders are expensive. For example, a 40L nitrogen cylinder at 1.2MPa lasts only ~30 minutes, requiring frequent replacements. In contrast, an air compressor uses free ambient air and only consumes electricity, saving up to €20,000 annually.
ㅤ
Better performance for stainless steel: At the same settings, compressed air achieves burr-free cuts on thicker stainless steel at lower pressures. While compressed air contains oxygen, causing oxidation and darkened cut surfaces. Nitrogen delivers oxidation-free, bright white finishes.

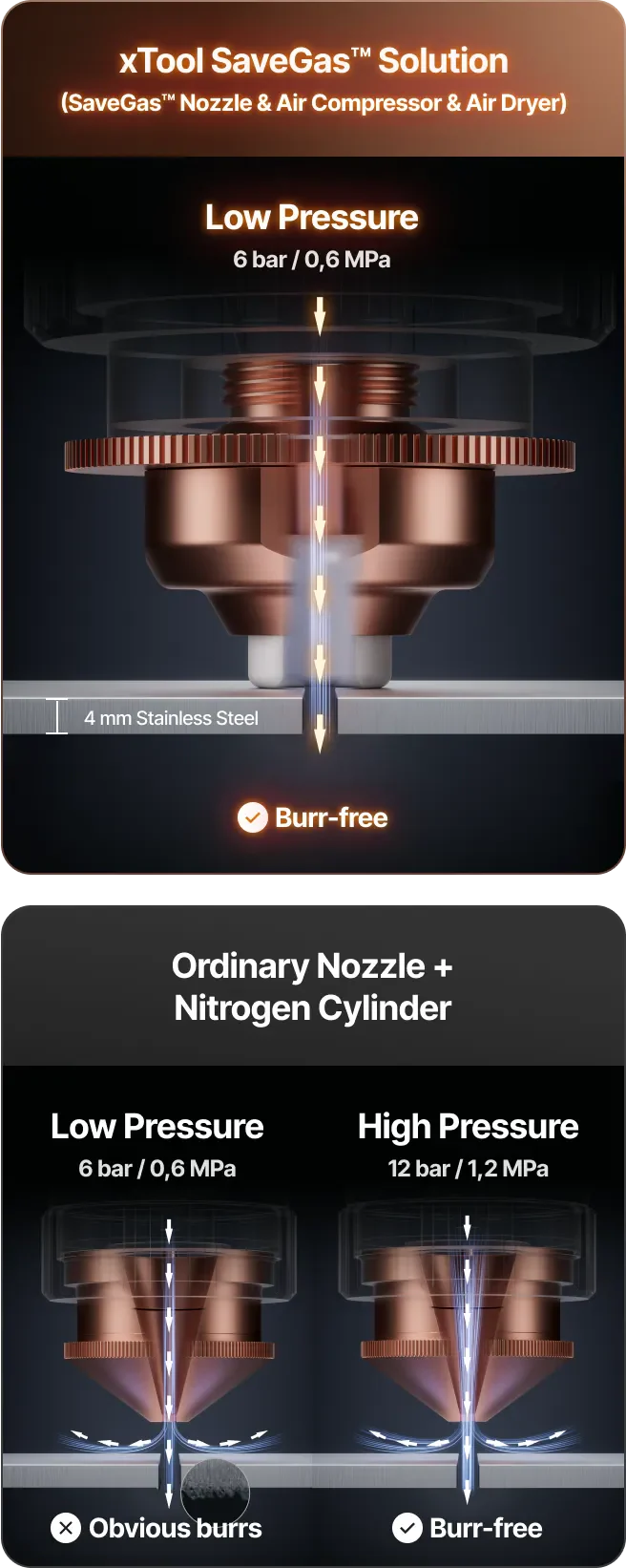

Are there any limitations or drawbacks to using SaveGas™ Nozzle?
xTool SaveGas™ Nozzle will cause surface scratches and cannot cut intricate patterns smaller than 2.5mm. If high cutting quality and pattern precision are required, it is recommended to use ordinary nozzles and high pressure over 1.2 MPa (compressed air or nitrogen/argon).
What's the electrical environment requirement for xTool air compressor and air dryer？
- Air compressor: 220V, 10A, 2200W rated power.
- Air dryer: 220V, 1.73A, 380W rated power.
What's the spec of air hose connections?
M10 quick-connect structure (10mm diameter hose), same as the xTool MetalFab.
What's the noise level of the xTool air compressor?
About 85dB when it's generating the air.
