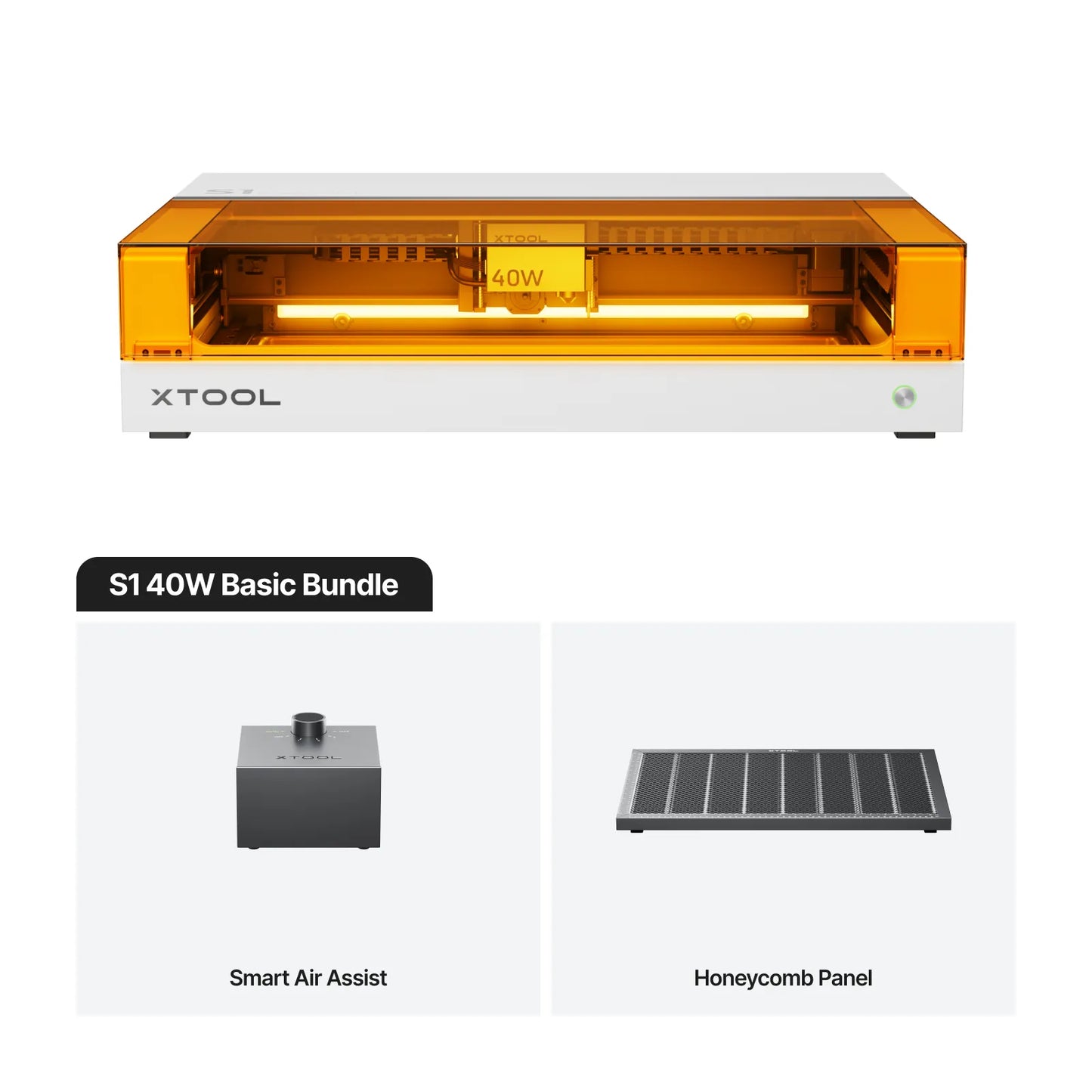

xTool S1 Enclosed Diode Laser Cutter
Η τιμή δεν περιλαμβάνει ΦΠΑ. Ο ΦΠΑ υπολογίζεται στο ταμείο.
The xTool S1 features switchable laser modules for nearly any material, Pin-point™ positioning 10× more accurate than single-camera systems, and a 608 × 385 mm bed for efficient batch processing. With AutoPassthrough™, 3D Curve™ engraving, and Class 1 safety protections, it ensures precise, versatile, and secure operation.
Color
Black
Power
20W
40W
Package
Basic Bundle
Rotary Bundle
Rotary Kit + 1064 Bundle
All-In-One SafetyPro Bundle
Δεν ήταν δυνατή η φόρτωση της διαθεσιμότητας παραλαβής
Payment & Security
Είμαστε εδώ για να βοηθήσουμε
Αν έχετε ερωτήσεις για κάποιο προϊόν, αν χρειάζεστε προσφορά χονδρικής, εξειδικευμένη συμβουλευτική ή θέλετε να κλείσετε ραντεβού για demo, η ομάδα μας είναι πάντα στη διάθεση σας
Why xTool F1 & F1 Lite is the Best Choice？
Next-Level Precision
Pin-point™ Positioning
Precision Matters for Your Treasures
S1 is equipped with revolutionary Pin-point Positioning™️ technology, and is 10 times* more accurate than single-camera systems. Effortlessly aiding you in accomplishing delicate engraving tasks, bidding farewell to waste and loss caused by positioning deviations.
One-pass Engraving Success, Zero Waste️
No matter the shape, it handles perfectly.
Snapshot & Batch fill
Snap a photo and seamlessly transfer to the desktop software for one-click Smart Fill, making bulk projects accurate and automated.
Switchable Laser Modules, Master Every Scenario
Flexible Laser Choices, Thick Cuts or Fine Details
40W
Create Like A Pro
Cut like a pro with our 40W laser head, slicing 18mm wood like butter and hitting speeds of 600mm/s.
2W IR
Ultra-HD Printing
With ultra-tiny 0.03mm laser spots, the 1064nm IR laser excels at detailed engraving for photos, jewelry, business cards, and more
Upgrade with Ease
Upgrade effortlessly by simply replacing the laser head, eliminating the need to purchase an additional machine. This maximizes cost and space savings for you.
Never Limited By Size,Go Big for Long-Term Gains
The xTool S1 boasts a large bed size of 608mm x 385mm
and a spacious work area of 497mm x 317mm
All Sizes, All at Once
From large canvas to tiny pouches, we effortlessly personalize multiple items of various sizes in a single run.
Tiny Items, Huge Output
Effortlessly engrave up to 117 dog tags (50mm x 30mm) and enjoy the convenience.
600mm/s Working speed
Less Time for Higher Productivity
The xTool S1 offers boosted effiiency and faster batch processing, ideal for small
bussiness and DlY making.
Speed with Quality Assurance
The design uses a sturdy rail structure for enhanced stability, ensuring high-quality processing results even at extreme working speeds of up to 600mm/s.
Perfect Curved Engraving
3D Curve™ : The xTool S1 features an advanced autofocus system that dynamically adjusts focus for flawless carving on curved surfaces
High Quality Guaranteed
Solid As A Rock
The aerospace-grade aluminum frame delivers unbeatable stability, keeping the laser head steady for consistently professional results.
Highest Safety Standards
The xTool S1 laser engraver's full-body cover uses UL94-V0, the highest grade of flame retardant, creating a strong flame barrier and ensuring your peace of mind.
World-First
Fire Detected? Extinguished!
Upon fire detection, the fire safety set automatically releases CO2, providing a one-stop fire risk solution.
Bye Harmful Gases with Strong Fans
To protect health, powerful exhaust fans quickly discharge the harmful gases produced by laser processing.
Light Filter Cover Protects Your Eyes
The large, high-transparency cover offers excellent dual-band light filtering (0.85% red light left; 0.35% blue light left), enabling clear process observation without goggles.
World's 1st Screen Printing Solution with Laser
Laser + Printer Bring Colors to Laser World
The xTool Screen Printer expands material use, letting you print vibrant colors on anything, not just 300+materials. Pair with xTool S1, it's now easy to add bright, eye-catching colors to your laser creations. You can also replicate your designs effortlessly with batch printing, enhancing your projects and growing your business.
Συχνές Ερωτήσεις
Which module should I choose, 40W or 20W?
If you are pursuing efficiency and have higher cutting requirements, please choose the 40W option; if you do more engraving jobs and have no demand for efficiency or cutting capabilities, then the 20W is suitable for you.
Specifically, the 40W can cut 18mm cherry wood, 15mm dark opaque acrylic, and 0.1mm stainless steel in one pass, while the 20W can cut 10mm cherry wood, 8mm dark opaque acrylic, and 0.04mm stainless steel in one pass. However, the 20W has a smaller laser spot (0.06mm*0.08mm) than the 40W (0.08mm*0.10mm), which means it can produce finer engraving results.
It is easy for new comers to use xTool S1?
For sure! It's the smartest enclosed diode laser cutter ever. You'll see how awesome the auto-focus function is which helps you craft in minutes and get HD-print projects. Needless to say the IR 1064 laser explores in all pure metal (alongside the coated one) engraving!
Plus, we can solve any problem via info@makelab.gr (pre-sale), support@makelab.gr ( after-sale) or +30 2317 009 808 . The only thing you need to do is keep practicing and get handy along the way.
What materials can be engraved or cut?
Diode laser cuttable : paper, wood, leather, MDF, felt, some dark opaque acrylic.
Diode laser engravable : Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal.
2W 1064nm Infrared Laser Engravable : Metal, Plastic, Black Acrylic.
What can the 1064nm laser module do? Do I need to buy it?
It can engrave almost any metal, as well as acrylic and plastic. If you want to do some jewelry and acrylic brand creativity, you will need it.
What is the maximum height of the object that the S1 can process?
Without the Riser Base : S1 Laser Machine: 42mm
With the Riser Base : S1 + Class 1 Riser Base: 125mm
What's the size of the xTool S1 Honeycomb Panel?
With the foot pad : 565*375*27mm
Without the foot pad : 565*375*22mm
Note : The honeycomb panel is recommended to be placed on the right side.
Is the xTool S1 fully compatible with Lightburn?
Lightburn supports basic operations including focusing, framing, processing, and RA2 Pro. However, being a third-party software, it may not provide comprehensive support for all features and lacks functions such as laser module position acquisition, material area measurement, and curved surface engraving mode. You can operate xTool S1 with LightBurn by following the guidance.
